Figure
1.
(a) Location map of study area in the Yangtze Platform, (b) and (c) tectonic map of study area and well location (modified from Bao et al., 2016; Zhang et al., 2014).
| Citation: | Zhongrui Wu, Sheng He, Yuanjia Han, Gangyi Zhai, Xipeng He, Zhi Zhou. Effect of Organic Matter Type and Maturity on Organic Matter Pore Formation of Transitional Facies Shales: A Case Study on Upper Permian Longtan and Dalong Shales in Middle Yangtze Region, China. Journal of Earth Science, 2020, 31(2): 368-384. doi: 10.1007/s12583-019-1237-6
|
The considerable success of the North American shale gas revolution has triggered a global boom in shale gas exploration, and China has invested heavily in shale gas exploration and development in Paleozoic marine shale formations (Ehsan et al., 2018; Dong et al., 2017, 2015; Mastalerz et al., 2013; Loucks et al., 2012; Jarvie et al., 2007). With the proceeding shale gas exploration and production from the Lower Paleozoic shale formations, including Niutitang, Wufeng and Longmaxi formations, Fuling, Weiyuan and several other major shale gas fields have been discovered (Peng et al., 2019; Yang et al., 2017, 2016). Recently, the exploration of Permian shales in southern China has received increasing attention, especially the Upper Permian Longtan and Dalong formations, which are widely distributed in the Yangtze area (Wu et al., 2019; Bao et al., 2016). The high total organic carbon (TOC) content (mostly > 2%) and high thermal maturity (Ro=1.2%-3.0%) of the two shale formations indicate great potential for shale gas production. Compared with the over-mature marine shales in southern China, the depositional facies and thermal maturity of the Upper Permian Longtan and Dalong shales vary dramatically, resulting in significant differences in their OM type, mineral composition, and pore structures and hence gas adsorption capacity.
Unlike conventional gas reservoir, shale gas reservoir has the characteristics of being "self-generation and self-accumulation" with extremely low porosity and permeability (Liang et al., 2019; Wu et al., 2019). Pore structure is one of the critical factors affecting the enrichment and distribution of shale gas (Peng et al., 2019; Cao et al., 2018). For shales containing mainly nanoscale pores, the pore structure is generally complex and heterogeneous (Clarkson et al., 2012; Nelson, 2009). The pore types in shales are generally classified as OM pores, interparticle pores, and intraparticle pores (Loucks et al., 2012). Among these, the nanoscale OM pores developed within bitumen and kerogen are the most important type, as these OM pores are usually connected with each other, building three-dimensional pore networks, which provide more space for gas storage (Dong et al., 2019; Lu et al., 2015). Apart from that, the nanoscale OM pores will increase specific surface areas, and therefore, significantly contribute to higher gas adsorption capacity (Zhang et al., 2016; Ross et al., 2009).
OM pores can be divided into two types based on whether they are of bitumen or kerogen origin. The definition of bitumen remains vague at present, and there are numerous classifications and terminologies used, such as solid bitumen, pyrobitumen, asphalt, asphaltite, and migrabitumen (Cardott et al., 2015; Taylor et al., 1998; Curiale, 1986; Tissot and Welte, 1984). At present, the common classification of bitumen is solid bitumen and pyrobitumen (Misch et al., 2019; Mastalerz et al., 2018; Liu et al., 2017). In order to correlate bitumen formation with hydrocarbon generation from the perspective of the thermal conversion degree of the primary OM, solid bitumen can be further divided into pre-oil bitumen and post-oil bitumen (Cardott et al., 2015; Mastalerz et al., 2000; Curiale, 1986, 1983). During the process of thermal maturation, oil-prone kerogen is broken down to pre-oil bitumen, oil, post-oil bitumen, and finally pyrobitumen (Bernard et al., 2012a, b ; Jarvie et al., 2007; Jacob et al., 1989; Curiale et al., 1986). As reported in literature, the occurrence of solid bitumen is generally regarded as the secondary product from oil-prone kerogen by thermal degradation and hydrocarbon generation (Hackley and Cardott, 2016). Pre-oil bitumen is the early product formed during the conversation of kerogen to liquid hydrocarbons, with short migration distance to voids and fractures or in-situ accumulation (Mastalerz et al., 2018).
In contrast, post-oil bitumen is the degradation residue of liquid hydrocarbons mobilized in the mineral matrix and accumulated in the interparticle space (Misch et al., 2019; Mastalerz et al., 2018, Mastalerz and Glikson, 2000; Curiale, 1986). Mahlstedt and Horsfield (2012) described post-oil bitumen as pore-occluding petroleum that can generate condensate oil and gas through secondary cracking. Pyrobitumen is the residues of formerly post-oil bitumen generated from secondary cracking and the formation of gas hydrocarbons (Misch et al., 2019; Suárez-Ruiz et al., 2012; Hill et al., 2003). According to organic geochemists, the maindifference between solid bitumen and pyrobitumen is that solid bitumen is soluble in CS2, while pyrobitumen is insoluble in CS2 (Hunt, 1996; Tissot and Welte, 1984). Lewan and Pawlewicz (2017) suggested that the lowest thermal maturity of Ro for secondary cracking and gas generation was 1.5%, meaning that the temperature boundary between solid bitumen and pyrobitumen was roughly 170 ℃. Waples (2000) reported that the occurrence of pyrobitumen was considered to be 150 ℃ or higher, and the corresponding Ro is above 1.2%.
In recent years, an increasing number of researchers have focused on the evolution of OM pores with thermal maturity as well as other factors influencing the morphology and distribution of OM pores. Curtis et al. (2012) investigated shale samples with Ro ranging from 0.51% to 6.36% and found that there were no secondary pores in shale samples in the oil window (Ro < 0.90%). In contrast, secondary pores can be observed in shales sample with Ro greater than 1.23%. Cardott et al. (2015) stated that the OM in Woodford shales was post-oil bitumen, which is the solid carbon residue of previously migrated oil, and the secondary nanoscale OM pores started to generate at around Ro=0.9%. Bernard and Horsfield (2014), Bernard et al. (2012a) suggested that the nanoporous OM in the gas window of the Barnett shales was pyrobitumen, which was the residue of solid bitumen after secondary cracking and the generation of gaseous hydrocarbons. Furthermore, thermal maturity was not the only factor influencing the formation of OM pores. Other factors such as OM type and compaction can also affect the morphology and distribution density of OM pores. Liu et al. (2017) found that Type-Ⅲ OM tended to be nonporous and only part of the inertinite develop cellular pores. The terrestrial woody macerals such as vitrinite and inertinite did not have dramatic change with the increase of thermal maturity because of their poor potential in generating hydrocarbon. Milliken et al. (2013) studied Pennsylvania Marcellus Formation and argued that the dominant OM filling the intergranular spaces without distinct shapes developed numerous internal sponge-like pore, which contrasted sharply with the adjacent wood fragments. Therefore, it is imperative to classify pores in different types of OM with varying maturities.
Shale samples were collected from two drilling wells in the Middle Yangtze area. Sixteen core samples from the Upper Permian Longtan and Dalong formations were selected from the wells XY1 and EJ1 to investigate the factors controlling pore structure. Qualitative and quantitative analysis was carried out, including field emission scanning electron microscopy (FE-SEM), low-pressure N2 and CO2 adsorption, high-pressure CH4 adsorption, and mercury intrusion capillary pressure (MICP) analysis. In order to study the retention of hydrocarbons, hydrocarbon fluid inclusions developed in calcite veins were investigated using a microscope equipped with both transmitted white and incident ultraviolet (UV) light and through Raman microprobe analyses. The principal objectives of the study were to (1) compare the differences in pore structure in Dalong and Longtan formations; (2) identify and classify the OM (kerogen, bitumen, and pyrobitumen) in shales of Dalong and Longtan formations with different thermal maturity and depositional environments; (3) investigate the OM pore microstructure, including the shape, size, and distributed density in different OM; and (4) discuss factors affecting pore development.
The wells XY1 and EJ1 are both located in the Middle Yangtze region (Fig. 1a). The Well XY1 is drilled in Xiangzhong Lianyuan Depression which lies between Hengshan uplift belt and Jiangnan-Xuefeng uplift belt (Fig. 1c). During the Longtan period, a set of shales with lagoon-swamp facies were deposited widely in Lianyuan Depression (Bao et al., 2016). Silty mudstone, muddy siltite, and coal seams can be observed in Longtan Formation. Afterwards, a transgression occurred and a set of platform basin facies shales were deposited during the Dalong period, characterized by shales, calcareous shales, and muddy limestone. The area where Well XY1 is located has undergone considerable uplift and erosion during Yanshanian and Himalayan periods, and the thickness of strata erosion was approximately 2 000 m (Bao et al., 2016), leading to the result that the present burial depths of Longtan and Dalong formations were 600-700 m.
Well EJ1 is located in Huaguoping synclinore which lies between Sichuan Basin and Jiangnan-Xuefeng uplift belt (Fig. 1b). The depositional facies of the Upper Permian Dalong Formation in Well EJ1 is a platform basin (Liu et al., 2019). The Dalong shales in Well EJ1 are characterized by carbonaceous shales and shales. The area where Well EJ1 is located has undergone enormous uplift and erosion during Yanshanian-Himalayan epoch, and the erosional formation thickness was approximately 5 000 m (Zhang et al., 2014), leading to the result that the present burial depths of Dalong Formation were 820-860 m.

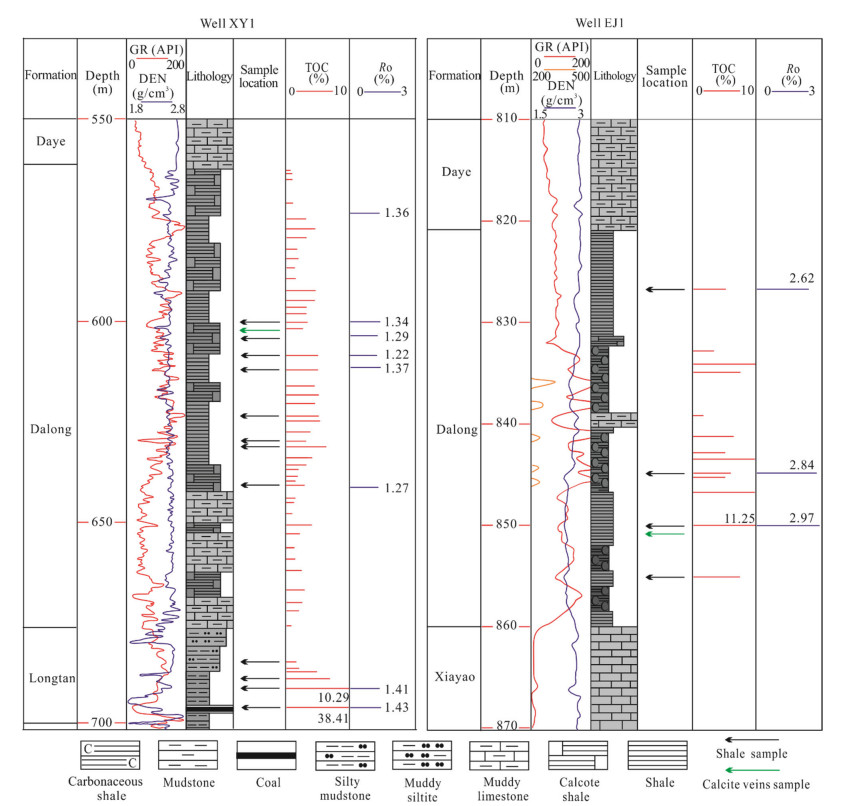

The stratigraphic column and sample location are presented in Fig. 2. A total of four and eight samples were selected from Longtan and Dalong formations in Well XY1, respectively, while a further set of four samples were taken from Dalong Formation in Well EJ1. In addition, two Dalong samples containing fracture calcite veins were taken from each well for further study to characterize the hydrocarbon inclusions.
All samples were pre-processed prior to the start of the experiment using a range of techniques including TOC measurement, XRD, low-pressure N2 and CO2 adsorption, high-pressure CH4 adsorption, mercury injection capillary pressure (MICP) measurement, and field-emission-scanning electron microscopy (FE-SEM) analysis. Samples with fracture calcite veins were treated as doubly polished sections, approximately 300 μm in thickness, for fluid inclusion analysis including petrographic observation and laser Raman spectral measurement.
The analysis of TOC content was performed by combustion in a CS-230 analyzer. All samples were crushed to less than 200 mesh and the powder was soaked in HCL solution in order to remove any carbonates. X-ray diffraction (XRD) analysis was carried out using an X'Pert PRO DY2198 X-ray diffractometer to calculate mineral composition.
Low-pressure CO2 and N2 adsorption tests were conducted on the 16 samples using a Quantachrome Autosorb iQ surface area analyzer to acquire adsorption-desorption isotherms and to calculate pore volumes. Approximately 1-2 g of 60-80 mesh sample powder was put in tubes and dried at 110 ℃ for 8 h to remove water and other gases. The CO2 adsorption was measured at temperature of 273 K and at 104.5 kPa pressure, while the N2 adsorption was conducted at temperature of 77.3 K and at 97 kPa pressure. The relative pressure (P/P0) of CO2 and N2 adsorption ranged from 0 to 0.32 and 0.01 to 0.99, respectively. Micropores (< 2 nm) were measured by CO2 adsorption using density functional theory (DFT) model. N2 adsorption data was used to measure the mesopore (2-50 nm) and macropore (> 50 nm) using Barrett Joyner Halenda (BJH) model.
High-pressure CH4 adsorption analysis was performed using a RUBOTHERM isothermal adsorption instrument with maximum pressure of 35 MPa and temperature of 30 ℃. First, approximately 4-5 g of 60-80 mesh sample powder was put in the sample cell and heated to 100 ℃ in a vacuum for 4 h to remove the moisture and impurity gases. The Langmuir equation was used to obtain and fit the isothermal adsorption curve. The experiment could only measure the excess adsorption capacity. Due to the supercritical adsorption, the excess adsorption capacity would decrease with increasing pressure after reaching the maximum value. The excess adsorption capacity was transformed to absolute adsorption capacity according to the relationship proposed by Gibbs (Gibbs, 1948).
MICP analysis was performed to investigate pore-throat distribution using a Micromeritics AutoPore Ⅳ 9510 instrument at pressures ranging from 0.034 to 413 MPa. In order to avoid the influence of the sample surface roughness on the experimental results, several samples (XY-3, XY-4, XY-9, XY-11, EJ-2, and EJ-4) were cut into cubes (1×1×1 cm3) with smooth surfaces. The Washburn equation was used to calculate pore-throat size (Washburn, 1921a, b ). The surface tension of mercury was 485 dyne/cm. The contact angle between the mercury and porous media was 130°. The measured pore throat size ranged from 3 nm to 36 μm.
Six samples (XY-2, XY-6, XY-10, XY-11, EJ-2, and EJ-4) were selected to investigate the morphology of OM pores using a high-resolution FE-SEM (Zeiss Merlin) instrument equipped with an energy dispersive X-ray spectroscopy (EDS) to determine the elemental composition of the minerals. All the samples were first mechanically grinded and then argon-ion polished using the Leica EM TIC 3X ion-milling technique to create a super-smooth surface. The lowest pixel resolution was approximately 10 nm and the magnification ranged from 10 to 100×103. To enhance the electrical conductivity of the polished surface, all samples were sprayed with a 4 nm thick carbon layer.
Two calcite veins samples were selected to study fluid inclusions using a NIKON-LV100 microscope equipped with transmitted white and incident UV sources. Aromatic hydrocarbons and polar compounds in oil inclusions can emit fluorescence under UV light, while gaseous hydrocarbons such as CH4 and C2H6 in gas inclusions cannot emit fluorescence (Zhao et al., 2019). Therefore, oil inclusions can be identified by fluorescence under UV light. The composition of gas inclusions was detected by laser Raman spectrometry using a JY/Horiba LabRam HR800 Raman system. The 300 grooves/mm grating was used to collect the spectra of gas inclusions in the range 1 000-4 000 cm-1. The time needed to acquire the spectrum was approximately 100 seconds to guarantee a high signal-to-noise ratio.
The TOC contents of the 16 samples are listed in Table 1. Samples from Dalong Formation in Well XY1 mainly contained Type-Ⅱ OM with TOC ranging from 2.72% to 6.79%. Samples from Longtan Formation in Well XY1 contained mainly Type-Ⅲ OM with TOC ranging from 1.72% to 10.29% (Bao et al., 2016), TOC content of the coal sample was 38.41%. Samples from Dalong Formation in Well EJ1 contained Type-Ⅱ OM with TOC ranging from 5.52% to 11.25% (Qiu et al., 2019). The TOC of samples close to the coal seam increased in Longtan Formation (Fig. 2). The thermal maturity results showed that the Ro of Well XY1 samples ranged from 1.22% to 1.43%, which was assigned to early generation stage of the condensate oil and wet gas. The Ro of Well EJ1 samples ranged from 2.62% to 2.97%, which was assigned to the over-mature stage and generation of dry gas.
| Sample | Depth (m) | Formation | Lithofacies | TOC (%) | Ro (%) | Kerogen type | Mineral composition (wt.%) | ||||||
| Quartz | Feldspar | Dolomite | Calcite | Clay | Pyrite | Other | |||||||
| XY-1 | 600.22 | Dalong | Black calcareous shale | 3.69 | 1.34 | Ⅱ | 60 | 6 | 2 | 10 | 20 | 2 | |
| XY-2 | 602.67 | Dalong | 2.72 | / | Ⅱ | 63 | 3 | 2 | 23 | 8 | 1 | ||
| XY-3 | 608.08 | Dalong | 4.96 | 1.22 | Ⅱ | 45 | 7 | 4 | 19 | 23 | 2 | ||
| XY-4 | 612.76 | Dalong | 5.09 | 1.37 | Ⅱ | 49 | 7 | 1 | 22 | 18 | 3 | ||
| XY-5 | 624.87 | Dalong | 5.07 | / | Ⅱ | 33 | 7 | 2 | 19 | 36 | 3 | ||
| XY-6 | 629.59 | Dalong | 3.13 | / | Ⅱ | 55 | 4 | 6 | 20 | 13 | 2 | ||
| XY-7 | 631.18 | Dalong | 6.79 | / | Ⅱ | 49 | 5 | / | 10 | 33 | 3 | ||
| XY-8 | 641.78 | Dalong | 3.00 | 1.27 | Ⅱ | 29 | 8 | / | 38 | 21 | 4 | ||
| XY-9 | 685.07 | Longtan | Grey-black silt mudstone | 1.72 | / | Ⅲ | 53 | 16 | / | / | 31 | / | |
| XY-10 | 689.10 | Longtan | Black-mudstone | 7.17 | / | Ⅲ | 14 | 5 | / | 2 | 57 | / | 22 (Siderite) |
| XY-11 | 692.66 | Longtan | Black mudstone | 10.29 | 1.41 | Ⅲ | 32 | 3 | 5 | / | 60 | / | |
| XY-12 | 697.81 | Longtan | Coal | 38.41 | 1.43 | Ⅲ | 40 | / | / | / | 48 | 12 | |
| EJ-1 | 827.87 | Dalong | Black shale | 5.52 | 2.62 | Ⅱ | 12 | 30 | / | 40 | 14 | 2 | 2 (Gypsum) |
| EJ-2 | 845.00 | Dalong | 6.14 | 2.84 | Ⅱ | 70 | 7 | 1 | 8 | 11 | 3 | ||
| EJ-3 | 850.75 | Dalong | 11.25 | 2.97 | Ⅱ | 76 | 7 | 3 | 9 | 4 | 1 | ||
| EJ-4 | 856.46 | Dalong | 7.62 | / | Ⅱ | 52 | 10 | 1 | 8 | 26 | 3 | ||
DownLoad:
CSV
The mineral compositions of Dalong Formation in the wells XY1 and EJ1s mainly consisted of quartz, carbonate minerals, feldspar, and clay minerals. The clay fraction was the dominant mineral species for Longtan Formation in Well XY1, with almost no carbonate minerals present (Table 1).
According to the classification of isotherms proposed by IUPAC (Thommes et al., 2015), the CO2 adsorption isotherms of all 16 samples showed Type-Ⅰ curve characteristics (Figs. 3a-3c). Dalong Formation samples in Well XY1 displayed the least amount of adsorption, while Longtan Formation samples and Dalong Formation samples in Well EJ1 showed a much higher gas adsorption capacity, indicating that these samples had more micropores. Micropore volumes calculated from CO2 adsorption are listed in Table 2. Micropore volumes of Dalong Formation and Longtan Formation in Well XY1 were in the range of 0.002-0.005 and 0.004-0.010 cm3/g, respectively, while Dalong Formation in Well EJ1 had the highest micropore volumes ranging from 0.007 to 0.011 cm3/g.
| Sample ID | Formation | TOC (wt.%) | DFT micropore volume (cm3/g) | BJH mesopore volume (cm3/g) | BJH macropore volume (cm3/g) | Hg porosity (%) |
| XY-1 | Dalong | 3.69 | 0.004 | 0.003 | 0.004 | / |
| XY-2 | Dalong | 2.72 | 0.003 | 0.003 | 0.004 | / |
| XY-3 | Dalong | 4.96 | 0.005 | 0.004 | 0.005 | 0.53 |
| XY-4 | Dalong | 5.09 | 0.004 | 0.003 | 0.007 | 0.31 |
| XY-5 | Dalong | 5.07 | 0.003 | 0.002 | 0.003 | 0.18 |
| XY-6 | Dalong | 3.13 | 0.002 | 0.003 | 0.005 | 0.26 |
| XY-7 | Dalong | 6.79 | 0.004 | 0.003 | 0.004 | / |
| XY-8 | Dalong | 3.00 | 0.003 | 0.004 | 0.004 | / |
| XY-9 | Longtan | 1.72 | 0.004 | 0.007 | 0.007 | 1.21 |
| XY-10 | Longtan | 7.17 | 0.010 | 0.012 | 0.004 | / |
| XY-11 | Longtan | 10.29 | 0.009 | 0.013 | 0.006 | 1.53 |
| XY-12 | Longtan | 38.41 | 0.010 | 0.002 | 0.004 | / |
| EJ-1 | Dalong | 5.52 | 0.007 | 0.013 | 0.008 | 0.85 |
| EJ-2 | Dalong | 6.14 | 0.008 | 0.013 | 0.006 | 2.12 |
| EJ-3 | Dalong | 11.25 | 0.011 | 0.019 | 0.013 | 5.42 |
| EJ-4 | Dalong | 7.62 | 0.010 | 0.016 | 0.007 | 1.63 |
DownLoad:
CSV
Figures. 3d-3f show the N2 sorption-desorption isotherms of all 16 samples. According to the classification of isotherms proposed by IUPAC (Thommes et al., 2015), the isotherms of all 16 samples were Type-Ⅱ and Type-IV(a), indicating multi-layer adsorption. Dalong Formation samples in Well EJ1 had the highest amount of adsorption, which was approximately five times higher than that of Dalong Formation samples in Well XY1 and twice as much as that of Longtan Formation samples. From this we inferred that there were more pores present in Dalong Formation of Well EJ1. According to the classification of hysteresis loops proposed by IUPAC (Thommes et al., 2015), the hysteresis loops of Longtan samples in Well XY1 and Dalong samples in Well EJ1 were the mixture of H2(b) and H3 types, while the hysteresis loops of Dalong samples in Well XY1 were assigned to H4 (Fig. 3). All isotherms showed a hysteresis loop, indicating that capillary condensation had occurred in the mesopores. It was obvious that the opening of the hysteresis loops of Dalong samples in Well XY1 were narrow, reflecting relatively small pore size (Fig. 3d). The mesopore and macropore volumes were the highest in Dalong Formation samples from Well EJ1 and lowest in Dalong Formation samples from Well XY1 (Fig. 4).
According to the classification of isotherms proposed by IUPAC (Thommes et al., 2015), the absolute CH4 adsorption isotherms of all the samples show the characteristics of Type I curve (Fig. 5) with varying Langmuir adsorption capacity.

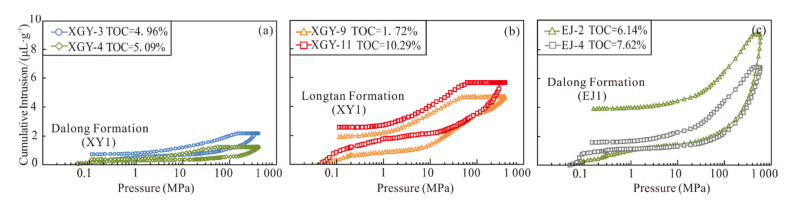

Figure 6 shows the curves of the mercury intrusion and extrusion at pressures ranging from 0.034 to 413 MPa. The mercury intrusion volumes of Dalong Formation samples from Well EJ1 were the highest (6.65-8.84 μL/g), which was approximately four times higher than that of Dalong Formation samples from Well XY1 (1.23-2.16 μL/g), and approximately twice as much as that of Longtan Formation samples (4.68-5.65 μL/g). As the mercury intrusion pressure ranged from 0.1 to 1 MPa, the XY-11 sample from Longtan Formation in Well XY1 took a larger volume of mercury than the other samples from Dalong Formation in both wells EJ1 and XY1s (Fig. 6). Therefore, it could be inferred that Longtan sample had more micron-sized pore throats, whereas Dalong sample had more nanoscale pore throats. When intrusion pressure reached 100 MPa, the volumes of mercury injected into Dalong samples of the EJ1 increased significantly (Fig. 6c), reflecting the good connectivity of the nanoscale pore throats. In contrast, the curves determined for Dalong samples from Well XY1 showed the least amount of injected mercury (Fig. 6a), indicating the worst pore development and connectivity. According to the distribution of pore throat histogram, 3-20 nm size pores account for a large proportion of the total pore volumes in Dalong Formation (Figs. 7a, 7b, 7e, 7f), whereas 20-200 nm size pores accounted for a large proportion of the total pore volumes in the Longtan Formation (Figs. 7 b, 7c). Porosity of Dalong samples in Well EJ1 (0.85%-5.41%) was much higher than that of Dalong samples in Well XY1 (0.18%-0.53%), and the porosity development of Longtan samples was between (1.21%-1.53%).
Many oil inclusions with blue fluorescence were observed in the calcite veins developed in Dalong shales of Well XY1 (Figs. 8b, 8d). Under transmission light, oil inclusions were densely distributed and transparent where the coating wall was thin and clear (Figs. 8a, 8c). Gas inclusions were relatively dark under transmission light and sparsely distributed (Figs. 8a, 8e). Under UV light, a certain proportion of gas inclusions was covered with a thin layer of liquid hydrocarbon inside and emitted weak yellow-green fluorescence (Figs. 8b, 8d). A small number of pure gas inclusions did not emit fluorescence (Figs. 8e, 8f). The laser Raman spectrogram for the gas inclusions in Well XY1 showed a significant CH4 peak at wavelength 2 909.473 9 cm-1, indicating this was a pure CH4 inclusion (Fig. 9a). Except for the CH4 peak, some gas inclusions also presented weak C2H6 peaks (2 879.657 3 and 2 944.351 2 cm-1) on both sides of the CH4 peak (Fig. 9b), indicating that the gas inside was a mixture of gaseous hydrocarbons (CH4 and C2H6). A large number of experimental analyses have confirmed that fluorescence color can be used as an indicator of OM maturity (George et al., 2001; Stasiuk and Snowdon, 1997; Videtich and Roger, 1988). The evolution of OM from low mature to high mature will lead to a change of inclusion type from heavy oil inclusion to condensate oil inclusion. Meanwhile, the fluorescence color emitted will change consistently from red, to yellow, to yellow-green, and to blue (Zhao et al., 2019; Zhao and Chen, 2008). Based on the observation that all oil inclusions show blue fluorescence accompanied by a small amount of gas inclusion, we inferred that there was light oil generated and expelled from the adjacent Dalong Formation shales, which was accompanied by a small quantity of gas due to gas-prone maceral degradation in the kerogen. The characteristics of the hydrocarbon inclusions were also consistent with the measured Ro (1.22%-1.34%) of Dalong samples in Well XY1 (Table 1) which was in the early stage of the condensate oil and wet gas window.
All hydrocarbon inclusions observed in calcite veins from Well EJ1 were gas inclusions without fluorescence (Figs. 8g, 8h). The laser Raman spectrogram for all gas inclusions showed a characteristic CH4 peak only (Fig. 9c). The measured Ro of the adjacent Dalong shales ranged between 2.62% and 2.97%, which was in the late stage of the dry gas window. It was inferred that the CH4 inclusions were the product of secondary cracking from the adjacent Dalong shales.
Based on observations of FE-SEM images, the interior of certain OM from Dalong shales of Well XY1 was not homogeneous and could be divided into dark and bright parts with distinct boundaries (Figs. 10a-10d). It is noticeable that spot-like and irregular pores were prone to develop in the light part, while dark part rarely developed observable pores. In addition, the boundary of bright part was irregular and serrated, whereas that of dark part was a regular and smooth curve (Figs. 10a-10d). Some OM partly filled the internal body cavity of the pyritized fossil (Fig. 10g). Many clay mineral flakes were entirely wrapped by OM (Figs. 10e, 10f). A small amount of OM which occurred as discrete particles with sharply defined edges and a relatively homogeneous internal texture can be observed within the mineral matrix (Figs. 10h, 10i).
Milliken et al. (2013) found a similar phenomenon in Pennsylvania Marcellus shales and interpreted this as wood fragments. Loucks et al. (2017) observed similar OM which was micron-size and nonporous from Yanchang Formation in the Ordos Basin, and interpreted this to be Type Ⅲ woody maceral. In this study, we considered that this kind of OM was terrestrial woody debris derived from the original plant tissue. There was a distinct boundary between two different OM (Figs. 10h, 10i).
The morphology of OM in Longtan shales of Well XY1 was significantly different from that in Dalong shales. As shown in Fig. 11, the OM in Longtan shales of Well XY1 had a distinct texture with a long strip shape. The boundary of the OM was smooth and regular. Due to compaction, some OM were highly curved and obviously oriented (Figs. 11e, 11f). The pore development in different OM varied considerably. Some OM were nonporous, while the adjacent one may possess a large number of pores, which were filled with quartz and illite (Figs. 11a-11d). Liu et al. (2017) found that vitrinite was nonporous, whereas the interior of inertinite generally had a certain number of circular cellular pores, some of which were filled with authigenic quartz. The sedimentary environment of Longtan Formation was lagoon-swamp facies and almost all OM was from terrestrial inputs. Sample XY-11 was very close to the coal seam at the base of Longtan Formation. Therefore, it was likely that the OM in Longtan Formation samples were all terrestrial woody debris.
The morphology of the OM in Dalong samples of Well EJ1 all showed the characteristics of filling interparticle pores and appeared pervasive throughout the mineral matrix (Fig. 12). Moreover, they had an amorphous shape as well as significant flow structure (Figs. 12e, 12h, 12i). Some OM enclosed mineral grains and clay flakes (Figs. 12c-12e). There were a small number of terrestrial woody debris whose morphology was substantially different from that of the adjacent amorphous OM (Figs. 12g, 12h). There were some differences between the OM in Dalong shales in the two wells. Unlike the OM in Well XY1, which had a granular texture and develop only a small number of pores inside, the interior of the OM in Well EJ1 was almost filled with sponge-like nanopores (Figs. 12a-12c, 12f). As Dalong shales from the two wells had the same type of OM, thermal maturity may have been the determining factor that controled the morphology and inner structure of the OM.
FE-SEM images showed OM pores in shale samples from different formations were different in terms of shape, size, and distribution density (Figs. 10-12). The OM pores in Dalong shales of Well XY1 were mainly micropores, sparsely distributed in the OM (Fig. 10). The morphology of the micropores was spot-like, while most mesopores had a irregular shape. A small number of round macropores could be observed in the terrestrial woody debris (Figs. 10h, 10i). Considering the thermal maturity of the samples (Ro=1.22%-1.34%), it could be inferred that the tiny spot-like and irregular OM pores were caused by the generation of gaseous hydrocarbons in gas-prone maceral in kerogen, which was also consistent with the occurrence of a small amount of CH4 inclusion in calcite veins.
The OM pores in Longtan shales of Well XY1 mainly consisted of mesopores and macropores, and had a relatively rounded shape with well defined-boundaries (Fig. 11). The distribution density of OM pores in different types of debris varied considerably. Some debris developed abundant pores with different sizes, ranging from several nanometers to hundreds of nanometers and even a few micrometers (Figs. 11a-11c), while other debris had only sporadic pores or no pores at all (Figs. 11b, 11d). Xu and Sonnenberg (2017) observed a similar phenomenon in the immature Bakken Shales, indicating that these rounded pores may not be the outcome of thermal evolution. The shape of the strip debris was extremely distorted and twisted, while the internal OM pores were still rounded and equant, implying that this kind of debris was hard enough to resist compaction (Figs. 11d-11e).
FE-SEM images showed that the irregular and spongy-like pores with diameter ranging from several to hundreds of nanometers were densely developed in the OM from Dalong shales of Well EJ1 (Fig. 12). There was a small number of terrestrial woody debris that had no pores or only a few rounded pores (Figs. 12g, 12i). The higher degree of thermal evolution gave rise to more densely distributed pores in the OM, while the quantitative distribution of pores in the terrestrial woody debris was almost the same as that from the samples from Well XY1, indicating that these rounded pores in the woody debris were not the product of thermal evolution.
In the shale samples from Dalong Formation of Well XY1, the FE-SEM images revealed that the OM could be divided into dark part and bright part (Figs. 10a-10d). The dark part generally enclosed mineral grains and occupied the interparticle pore space. Similarly, in the shale samples from Dalong Formation of the Well EJ1, the OM showed the void-filling characteristics, flow structure and enclosure of mineral grains (Figs. 11a-11f). Wood et al. (2018) and Loucks and Reed (2014) documented the exclusive petrographic characteristics of bitumen and pyrobitumen, including void-filling habit, enclosure of minerals, smoothly curved margin and flow structure which can be used to distinguish them from depositional kerogen. The measured Ro of the OM was in the range of 1.22%-1.37%, which was in the early stage of condensate oil and wet gas window. In addition, the occurrence of many light oil inclusions with blue fluorescence was a direct evidence that Dalong shales had generated the liquid-phase oil at their maximum burial depth before uplift. (Fig. 8). In Dalong samples taken from Well EJ1, the presence of pure CH4 inclusions was consistent with the measured Ro of the adjacent Dalong shales (2.62%-2.97%), which was in the later stage of the dry gas window. The OM in Dalong shales had undergone a high degree of thermal evolution and generated a large amount of CH4 during secondary cracking. Considering the thermal maturity, petrographic characteristics, and hydrocarbon inclusions within the calcite veins, it can be inferred that the nonporous dark part in the OM from Dalong shales in Well XY1 was the bitumen or migrated oil expulsed into interpaticle pore spaces from the adjacent oil-prone kerogen, while the OM particles with spongy pores in the OM from Dalong shales of Well EJ1 was pyrobitumen. For the bright part OM with granular texture inside and serrated outline from Dalong shales of Well XY1, we speculated that they were kerogen, and the internal pores were gas-related due to gas-prone maceral degradation.
Many previous studies have found that shales in the dry gas window with high TOC tended to develop larger pore volumes due to the conversion of OM into hydrocarbons (Cao et al., 2018; Bernard et al., 2012b; Curtis et al., 2012; Loucks et al., 2009). In the study, the TOC of Dalong shales taken from Well EJ1 had a positive linear relationship with micropore volume and mesopore plus macropore volume with correlation coefficients of 0.84 and 0.94, respectively (Figs. 13a, 13c). This was also consistent with the observations from the FE-SEM images (Fig. 12), where there were abundant OM pores of different sizes, ranging from several nanometers to hundreds of nanometers in the pyrobitumen. In contrast, the TOC of Dalong shales taken from Well XY1 had a weak correlation with micropore volumes and was negatively correlated with mesopore plus macropore volumes (Figs. 13a, 13c). This result was also observed in many other shales in the oil window, indicating that TOC content was not the only factor controlling pore development for the samples in the oil window (Ardakani et al., 2018; Xiong et al., 2016; Zhu et al., 2014; Milliken et al., 2013).
The pore volumes of Longtan shales of Well XY1 showed a positive correlation with the TOC content for samples with low TOC content (Fig. 13b). When the TOC content was higher than 7%, the micropore volume generally remained constant. It was notable that this trend could be observed in both the CO2 and CH4 adsorption. The XY-10, XY-11, and XY-12 samples had approximately the same maximum CO2 and CH4 adsorption capacity (Figs. 3, 5). Moreover, the mesopore plus macropore volumes dramatically decrease and showed a negative correlation with TOC content greater than 10% (Fig. 13d). Similarly, it can be seen from the N2 adsorption isotherm that the adsorption capacity of the coal sample experienced an abrupt drop (Fig. 3). Cao et al. (2018) also noticed that the TOC content increased with porosity before declining after a peak of 6.16% TOC content and explained that the shale samples with higher TOC content tended to contain more nonporous vitrinite, resulting in low pore volumes in high TOC content samples. FE-SEM images showed that there are large differences in the development of pores from different maceral debris in Longtan shales (Fig. 11). Some kerogen debris developed many pores with diameters ranging from several nanometers to hundreds of nanometers and even a few micrometers (Fig. 11c), whereas the adjacent OM were nonporous (Fig. 11b). Therefore, the negative correlation phenomenon, saturation of CO2 and CH4 adsorption capacity and decline of N2 adsorption capacity of the coal sample could be attributed to the change in the proportion of macerals with different primary pore development. We assumed that the shales located close to the coal seam with high TOC content would develop more nonporous woody debris.
Comparing the XY-7 (Type-Ⅲ) and XY-10 (Type-Ⅱ) samples of which the thermal maturity and TOC were similar, with the exception of the OM type, the micropore and mesopore volumes and gas adsorption capacity of XY-10 was obviously larger than that of XY-7 (Figs. 3, 5; Table 2). As revealed by FE-SEM images, some of terrestrial woody debris in the shale sample from Longtan Formation in Well XY1 had developed many rounded pores with diameter ranging from hundreds of nanometers to a few micrometers, whereas the kerogen from Dalong shales just developed few irregular micropores, sparsely distributed in kerogen. Therefore, it can be concluded that the primary pores in terrestrial woody debris from Longtan shales in Well XY1 might be the reason contribute to lager pore volumes and gas adsorption capacity than those from Dalong shales with similar thermal maturity do.
Thermal maturity has been proven to be a predominant factor controlling the formation of OM pores (Guo et al., 2018; Ardakani et al., 2017). In Dalong shales of Well XY1 which was in the early stage of the condensate oil and wet gas window, there was no obvious correlation between TOC content and pore volumes (Figs. 13a, 13c). Comparing the XY-1 and XY-7 samples of which the OM type and mineral compositions were similar, with the exception of the TOC values (3.69% and 6.79%, respectively), the two samples with significant different TOC had the similar volumes of micropores, mesopores, and macropores. In addition, the N2 adsorption capacity of the eight samples from Dalong Formation in Well XY1 which had different TOC content almost coincided with each other (Fig. 3b), indicating that these samples had similar mesopore and macropore volumes. However, by comparing the over-mature sample EJ-2 and sample XY-7, of which the TOC content, OM type, and mineral compositions were almost same, the pore volume and gas adsoption capacity of EJ-2 was obviously larger than that of XY-7.
Mastalerz et al. (2013) studied the pore structure of Mississippian New Albany shales covering thermal maturity from immature to over-mature, and concluded that the interconnected bitumen network would exert an adverse impact on total pore porosity due to occupying the pore space within the mineral grains. Löhr et al. (2015) found that primary porosity started to decline when in the oil window, and explained this as the masking of pores by retained bitumen. As revealed by FE-SEM images of the samples from Dalong Formation, Well XY1 (Figs. 10a-10d), some interparticle pores were clogged by bitumen. Furmann et al. (2016) found the reduction of porosity with thermal maturity increasing from 0.43% to 0.90% and attributed this to occupation of pore spaces by the increasing bitumen content. The impact of pore occlusion by bitumen has been evaluated by Valenza et al. (2013) who compared the porosity and surface areas of extracted samples with untreated samples which had a thermal maturity ranging from 1.0% to 1.5% (vitrinite reflectance and equivalent determined on bitumen).
They found that there was a notable increase in surface areas in the extracted samples, and interpreted this phenomenon as the opening of former blocked pore spaces occupied by bitumen. Thus, pore occlusion by bitumen generated in the oil window was one of the predominant factors that caused the reduction in pore volume of samples from Dalong Formation in Well XY1.
In addition, FE-SEM images (Figs. 10, 13) show that kerogen in Well XY1 mainly developed a small amount of speckled micropores and bituemen was nearly nonporous whereas abundant OM pores with a diameter ranging from several nanometers to hundreds of nanometers were densely distributed in the pyrobitumen in Well EJ1. The generation of gaseous hydrocarbons during secondary cracking have been commonly thought to be the main factor that contributed to the formation of secondary OM pores densely distributed in the nanoporous pyrobitumen (Misch et al., 2019; Bernard et al., 2012a; Curtis et al., 2012). Ding et al. (2019) proposed that the cause of secondary OM pores was gas expansion, and that the secondary OM pores only occurred when the gas expansion force was large enough. Han et al. (2017) noted that during the oil window to gas window, a large number of secondary OM pores were formed, which accounted for a large proportion of the increase in porosity. The OM in Well XY1 did not experience high temperature thermal evolution and only a small number of them were converted into gaseous hydrocarbons, which corresponded with the presence of a small quantity of gas inclusions within the calcite veins. Consequently, it led to the formation of few secondary OM pores. The occlusion of the interparticle pore spaces by bitumen and only formation of a small number of OM pores all contributed to the phenomenon above. Therefore, the increase in pore volumes of Type-Ⅱ shales with maturity was related to the generation of gaseous hydrocarbons and formation of pyrobitumen with numerous pores inside.
Terrestrial woody maceral debris exhibits completely different pore development characteristics during thermal maturity. For instance, Liu et al. (2017) found that cellular pores in inertinite can be observed in New Albany shales with thermal maturity ranging from 0.55% to 1.41%, while vitrinite was nonporous due to the low H/C ratio and poor hydrocarbon-producing ability. Fishman et al. (2012) observed isolated and rounded pores within the terrestrial kerogen macerals in Kimmeridge Clay Formation mudstone and stated that these OM pores were primarily occurring. As shown by FE-SEM images (Figs. 11, 12), the maceral debris in Longtan shales in the wet gas window had developed denser pores than it did in Dalong shales in the dry gas window. This phenomenon implied that these rounded pores in the kerogen debris were the primary pores inherited from the original plant structure (Figs. 11a-11c, 12h, 12i), and were not the product of thermal evolution.

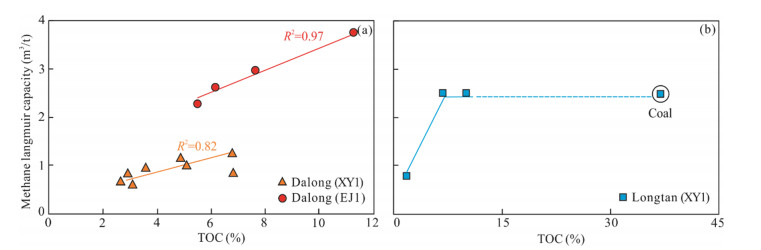

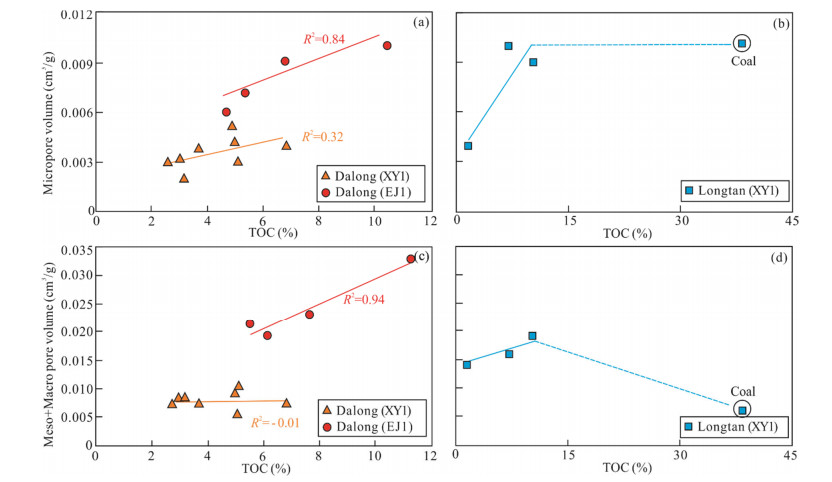

TOC content was generally considered to be the most important factor controlling the CH4 storage capacity of shale because numerous nanopores inside the OM would provide abundant sorption sites for CH4 (Peng et al., 2019; Dang et al., 2017; Liu et al., 2017). Figure 14a shows that Langmuir CH4 adsorption capacity of the sample from Dalong Formation had a positive correlation with TOC content. This positive relationship has also been found in many other studies, indicating that most nanopores are related to the OM (Dang et al., 2017; Xia et al., 2017). However, the CH4 adsorption capacity of sample EJ-1 (TOC=5.52%) was twice that of sample XY-7 (TOC=6.79%). This phenomenon was attributed to thermal maturity, as high thermal maturity samples formed more OM pores with larger surface areas and contributed significantly to the CH4 adsorption capacity. The CH4 adsorption capacity of the samples from Longtan Formation gradually saturated and kept steady with the increase in TOC content when the TOC content was higher than 7.17% (Fig. 14b). The CH4 adsorption capacity saturation phenomenon was related to the differences in OM pore development in samples with a high TOC content. As shown in Figs. 13b, 13d, when the TOC content reached 7.17%, the corresponding micropore volumes did not increase accordingly, while the mesopore plus macropore volumes even showed declining trend. Consequently, the reduction in pore volumes exerted an adverse effect on CH4 adsorption capacity of the samples with high TOC content.
The geochemical and pore characteristics of Longtan and Dalong Formation samples from Well XY1 and Dalong Formation samples in Well EJ1s were investigated. Based on the results, the following conclusions were reached.
(1) The measured Ro values for the shales in wells XY1 and EJ1 were in the range of 1.22%-1.43% and 2.62%-2.97%, respectively, indicating that Longtan and Dalong Formation shales in Well XY1 were in the early stage of the condensate oil and wet gas window, while Dalong Formation shales in Well EJ1 were in the later stage of the dry gas window. Many light oil inclusions mixed with a small amount of gas inclusions were found in calcite veins from Dalong Formation in Well XY1, whereas only pure CH4 inclusions were developed in the calcite veins from Dalong Formation in Well EJ1.
(2) The controlling factor for OM pore development in Dalong shales (Type-Ⅱ) and Longtan shales (Type-Ⅲ) of Well XY1 was OM type. In Longtan shales of Well XY1, some terrestrial woody debris developed many rounded pores with different sizes, ranging from several nanometers to hundreds of nanometers, whereas the kerogen from overlying Dalong shales with similar thermal maturity just developed only a small number of spot-like micropores. The terrestrial woody debris in Type-Ⅲ OM of Longtan shales had more primary pores inherited from original plant organism, which might contribute to larger gas adsorption capacity than that of Dalong shales of Well XY1 did.
(3) The controlling factor for OM pore development in the shale samples from Type-Ⅱ Dalong Formations in wells XY1 and EJ1 was thermal maturity. In Dalong shales of Well XY1 (Ro= 1.22%-1.43%), the gas-prone maceral with relatively low thermal maturity formed only a small number of spot-like micropores, and the bitumen with rarely observable pore generated from oil-prone maceral also exerted an adverse effect on pore structure by blocking and occupying some of interparticle pore space. In contrast, in Dalong shales of Well EJ1 (Ro=2.62%-2.97%), there were irregular pores, densely developed in the pyrobitumen with diameter ranging from several to hundreds of nanometers. Thermal maturity made a significant contribution to the formation of OM pores, resulting in larger pore volumes and gas adsorption capacity of Type-Ⅱ shale samples in the dry gas window.
We would like to thank the National Key R & D program of China (No. 2017YFE0103600), the National Natural Science Foundation of China (Nos. 41830431, 41672139) and the China National Science and Technology Major Projects (No. 2016ZX05034002-003) for financial assistance to this research. The final publication is available at Springer via https://doi.org/10.1007/s12583-019-1237-6.
| Ardakani, O. H., Sanei, H., Ghanizadeh, A., et al., 2017. Hydrocarbon Potential and Reservoir Characteristics of Lower Cretaceous Garbutt Formation, Liard Basin Canada. Fuel, 209:274-289. https://doi.org/10.1016/j.fuel.2017.07.106 |
| Ardakani, O. H., Sanei, H., Ghanizadeh, A., et al., 2018. Do all Fractions of Organic Matter Contribute Equally in Shale Porosity? A Case Study from Upper Ordovician Utica Shale, Southern Quebec, Canada. Marine and Petroleum Geology, 92:794-808. https://doi.org/10.13039/501100000159 |
| Bao, S., Lin, T., Nie, H., et al., 2016. Preliminary Study of the Transitional Facies Shale Gas Reservoir Characteristics:Taking Permian in the Xiangzhong Depression as an Example. Earth Science Frontiers, 23(1):44-53 (in Chinese with English Abstract) http://d.old.wanfangdata.com.cn/Periodical/dxqy201601004 |
| Bernard, S., Horsfield, B., Schulz, H. M., et al., 2012a. Geochemical Evolution of Organic-Rich Shales with Increasing Maturity:A STXM and TEM Study of the Posidonia Shale (Lower Toarcian, Northern Germany). Marine and Petroleum Geology, 31(1):70-89. https://doi.org/10.1016/j.marpetgeo.2011.05.010 |
| Bernard, S., Wirth, R., Schreiber, A., et al., 2012b. Formation of Nanoporous Pyrobitumen Residues during Maturation of the Barnett Shale (Fort Worth Basin). International Journal of Coal Geology, 103:3-11. https://doi.org/10.1016/j.coal.2012.04.010 |
| Bernard, S., Horsfield, B., 2014. Thermal Maturation of Gas Shale Systems. Annual Review of Earth and Planetary Sciences, 42(1):635-651. https://doi.org/10.1146/annurev-earth-060313-054850 |
| Cao, T. T., Deng, M., Song, Z. G., et al., 2018. Characteristics and Controlling Factors of Pore Structure of the Permian Shale in Southern Anhui Province, East China. Journal of Natural Gas Science and Engineering, 60:228-245. https://doi.org/10.1016/j.jngse.2018.10.018 |
| Cardott, B. J., Landis, C. R., Curtis, M. E., 2015. Post-Oil Solid Bitumen Network in the Woodford Shale, USA-A Potential Primary Migration Pathway. International Journal of Coal Geology, 139:106-113. https://doi.org/10.1016/j.coal.2014.08.012 |
| Clarkson, C. R., Jensen, J. L., Pedersen, P. K., et al., 2012. Innovative Methods for Flow-Unit and Pore-Structure Analyses in a Tight Siltstone and Shale Gas Reservoir. AAPG Bulletin, 96(2):355-374. https://doi.org/10.1306/05181110171 |
| Curtis, M. E., Cardott, B. J., Sondergeld, C. H., et al., 2012. Development of Organic Porosity in the Woodford Shale with Increasing Thermal Maturity. International Journal of Coal Geology, 103:26-31. https://doi.org/10.1016/j.coal.2012.08.004 |
| Curiale, J. A., 1983. Petroleum Occurrences and Source-Rock Potential of the Ouachita Mountains, Southeastern Oklahoma. Bull. Okla. Geol. Surv., 135:65 |
| Curiale, J. A., 1986. Origin of Solid Bitumens, with Emphasis on Biological Marker Results. Organic Geochemistry, 10(1-3):559-580. https://doi.org/10.1016/0146-6380(86)90054-9 |
| Dang, W., Zhang, J., Wei, X., et al., 2017. Geological Controls on Methane Adsorption Capacity of Lower Permian Transitional Black Shales in the Southern North China Basin, Central China:Experimental Results and Geological Implications. Journal of Petroleum Science and Engineering, 152:456-470 doi: 10.1016/j.petrol.2017.03.017 |
| Ding, J., Zhang, J., Yang, C., et al., 2019. Formation Evolution and Influencing Factors of Organic Pores in Shale. Journal of Southwest Petroleum University (Science & Technology Edition), 41(2):33-44 (in Chinese with English Abstract) http://d.old.wanfangdata.com.cn/Periodical/zgdizhi201802005 |
| Dong, T., Harris, N. B., Ayranci, K., et al., 2015. Porosity Characteristics of the Devonian Horn River Shale, Canada:Insights from Lithofacies Classification and Shale Composition. International Journal of Coal Geology, 141:74-90. https://doi.org/10.1016/j.coal.2015.03.001 |
| Dong, T., Harris, N. B., Ayranci, K., et al., 2017. The Impact of Rock Composition on Geomechanical Properties of a Shale Formation:Middle and Upper Devonian Horn River Group Shale, Northeast British Columbia, Canada. AAPG Bulletin, 101(2):177-204 doi: 10.1306/07251615199 |
| Dong, T., He, S., Chen, M., et al., 2019. Quartz Types and Origins in the Paleozoic Wufeng-Longmaxi Formations, Eastern Sichuan Basin, China:Implications for Porosity Preservation in Shale Reservoirs. Marine and Petroleum Geology, 106:62-73. https://doi.org/10.1016/j.marpetgeo.2019.05.002 |
| Ehsan, M., Gu, H., Akhtar, M. M., et al., 2018. Identification of Hydrocarbon Potential of Talhar Shale:Member of Lower Goru Formation by Using Well Logs Derived Parameters, Southern Lower Indus Basin, Pakistan. Journal of Earth Science, 29(3):587-593. https://doi.org/10.1007s12583-016-0910-2 doi: 10.1007/s12583-016-0910-2 |
| Fishman, N. S., Hackley, P. C., Lowers, H. A., et al., 2012. The Nature of Porosity in Organic-Rich Mudstones of the Upper Jurassic Kimmeridge Clay Formation, North Sea, Offshore United Kingdom. International Journal of Coal Geology, 103:32-50. https://doi.org/10.1016/j.coal.2012.07.012 |
| Furmann, A., Mastalerz, M., Bish, D., et al., 2016. Porosity and Pore Size Distribution in Mudrocks from the Belle Fourche and Second White Specks Formations in Alberta, Canada. AAPG Bulletin, 100(8):1265-1288. https://doi.org/10.1306/02191615118 |
| Gibbs, J. W., 1948. The Collected Works of J. Willard Gibbs. Yale University Press, New Haven |
| George, S. C., Ruble, T. E., Dutkiewicz, A., et al., 2001. Assessing the Maturity of Oil Trapped in Fluid Inclusions Using Molecular Geochemistry Data and Visually-Determined Fluorescence Colours. Applied Geochemistry, 16(4):451-473. https://doi.org/10.1016/s0883-2927(00)00051-2 |
| Guo, H. J., He, R. L., Jia, W. L., et al., 2018. Pore Characteristics of Lacustrine Shale within the Oil Window in the Upper Triassic Yanchang Formation, Southeastern Ordos Basin, China. Marine and Petroleum Geology, 91:279-296. https://doi.org/10.1016/j.marpetgeo.2018.01.013 |
| Hackley, P. C., Cardott, B. J., 2016. Application of Organic Petrography in North American Shale Petroleum Systems:A Review. International Journal of Coal Geology, 163:8-51. https://doi.org/10.1016/j.coal.2016.06.010 |
| Han, Y. J., Horsfield, B., Wirth, R., et al., 2017. Oil Retention and Porosity Evolution in Organic-Rich Shales. AAPG Bulletin, 101(6):807-827. https://doi.org/10.1306/09221616069 |
| Hill, R. J., Tang, Y. C., Kaplan, I. R., 2003. Insights into Oil Cracking Based on Laboratory Experiments. Organic Geochemistry, 34(12):1651-1672. https://doi.org/10.1016/s0146-6380(03)00173-6 |
| Hunt, J. M., 1996. Petroleum Geochemistry and Geology. WH Freeman and Company, New York. 1-58 |
| Jacob, H., 1989. Classification, Structure, Genesis and Practical Importance of Natural Solid Oil Bitumen ("Migrabitumen"). International Journal of Coal Geology, 11(1):65-79. https://doi.org/10.1016/0166-5162(89)90113-4 |
| Jarvie, D. M., Hill, R. J., Ruble, T. E., et al., 2007. Unconventional Shale-Gas Systems:The Mississippian Barnett Shale of North-Central Texas as One Model for Thermogenic Shale-Gas Assessment. AAPG Bulletin, 91(4):475-499. https://doi.org/10.1306/12190606068 |
| Lewan, M. D., Pawlewicz, M. J., 2017. Reevaluation of Thermal Maturity and Stages of Petroleum Formation of the Mississippian Barnett Shale, Fort Worth Basin, Texas. AAPG Bulletin, 101(12):1945-1970. https://doi.org/10.1306/01251716053 |
| Liang, X., Liu, S., Wang, S., et al., 2019. Analysis of the Oldest Carbonate Gas Reservoir in China-New Geological Significance of the Dengying Gas Reservoir in the Weiyuan Structure, Sichuan Basin. Journal of Earth Science, 30(2):348-366. https://doi.org/10.1007/s12583-017-0962-y |
| Liu, B., Schieber, J., Mastalerz, M., 2017. Combined SEM and Reflected Light Petrography of Organic Matter in the New Albany Shale (Devonian-Mississippian) in the Illinois Basin:A Perspective on Organic Pore Development with Thermal Maturation. International Journal of Coal Geology, 184:57-72. https://doi.org/10.13039/501100004543 |
| Liu, W. Q., Yao, J. X., Tong, J. N., et al., 2019. Organic Matter Accumulation on the Dalong Formation (Upper Permian) in Western Hubei, South China:Constraints from Multiple Geochemical Proxies and Pyrite Morphology. Palaeogeography, Palaeoclimatology, Palaeoecology, 514:677-689. https://doi.org/10.13039/501100002855 |
| Löhr, S. C., Baruch, E. T., Hall, P. A., et al., 2015. Is Organic Pore Development in Gas Shales Influenced by the Primary Porosity and Structure of Thermally Immature Organic Matter?. Organic Geochemistry, 87:119-132. https://doi.org/10.1016/j.orggeochem.2015.07.010 |
| Loucks, R. G., Reed, R. M., Ruppel, S. C., et al., 2009. Morphology, Genesis, and Distribution of Nanometer-Scale Pores in Siliceous Mudstones of the Mississippian Barnett Shale. Journal of Sedimentary Research, 79(12):848-861. https://doi.org/10.2110/jsr.2009.092 |
| Loucks, R. G., Reed, R. M., Ruppel, S. C., et al., 2012. Spectrum of Pore Types and Networks in Mudrocks and a Descriptive Classification for Matrix-Related Mudrock Pores. AAPG Bulletin, 96(6):1071-1098. https://doi.org/10.1306/08171111061 |
| Loucks, R. G., Reed, R. M., 2014. Scanning-Electron-Microscope Petrographic Evidence for Distinguishing Organic-Matter Pores Associated with Depositional Organic Matter versus Migrated Organic Matter in Mudrocks. GCAGS Transactions, 3:51-60 http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=CC0214853297 |
| Loucks, R. G., Ruppel, S. C., Wang, X. Z., et al., 2017. Pore Types, Pore-Network Analysis, and Pore Quantification of the Lacustrine Shale-Hydrocarbon System in the Late Triassic Yanchang Formation in the Southeastern Ordos Basin, China. Interpretation, 5(2):SF63-SF79. https://doi.org/10.1190/int-2016-0094.1 |
| Lu, J. M., Ruppel, S. C., Rowe, H. D., 2015. Organic Matter Pores and Oil Generation in the Tuscaloosa Marine Shale. AAPG Bulletin, 99(2):333-357. https://doi.org/10.1306/08201414055 |
| Mastalerz, M., Glikson, M., 2000. In-situ Analysis of Solid Bitumen in Coal:Examples from the Bowen Basin and the Illinois Basin. International Journal of Coal Geology, 42(2/3):207-220. https://doi.org/10.1016/s0166-5162(99)00040-3 |
| Mahlstedt, N., Horsfield, B., 2012. Metagenetic Methane Generation in Gas Shales I. Screening Protocols Using Immature Samples. Marine and Petroleum Geology, 31(1):27-42. https://doi.org/10.1016/j.marpetgeo.2011.06.011 |
| Mastalerz, M., Schimmelmann, A., Drobniak, A., et al., 2013. Porosity of Devonian and Mississippian New Albany Shale across a Maturation Gradient:Insights from Organic Petrology, Gas Adsorption, and Mercury Intrusion. AAPG Bulletin, 97(10):1621-1643. https://doi.org/10.1306/04011312194 |
| Mastalerz, M., Drobniak, A., Stankiewicz, A. B., 2018. Origin, Properties, and Implications of Solid Bitumen in Source-Rock Reservoirs:A Review. International Journal of Coal Geology, 195:14-36. https://doi.org/10.1016/j.coal.2018.05.013 |
| Milliken, K. L., Rudnicki, M., Awwiller, D. N., et al., 2013. Organic Matter-Hosted Pore System, Marcellus Formation (Devonian), Pennsylvania. AAPG Bulletin, 97(2):177-200. https://doi.org/10.1306/07231212048 |
| Misch, D., Gross, D., Hawranek, G., et al., 2019. Solid Bitumen in Shales:Petrographic Characteristics and Implications for Reservoir Characterization. International Journal of Coal Geology, 205:14-31. https://doi.org/10.13039/501100002428 |
| Nelson, P. H., 2009. Pore-Throat Sizes in Sandstones, Tight Sandstones, and Shales. AAPG Bulletin, 93(3):329-340. https://doi.org/10.1306/10240808059 |
| Peng, N., He, S., Hu, Q. H., et al., 2019. Organic Nanopore Structure and Fractal Characteristics of Wufeng and Lower Member of Longmaxi Shales in Southeastern Sichuan, China. Marine and Petroleum Geology, 103:456-472. https://doi.org/10.1016/j.marpetgeo.2019.03.017 |
| Qiu, X., Liu, Y., Dong, X., 2019. Organic Geochemical Characteristics of Shale from Dalong Formation in Jianshi Area, Western Hubei. Lithologic Reservoirs, 31(2):96-104. https://doi.org/10.1016/j.palaeo.2018.11.015 |
| Ross, D. J. K., Marc Bustin, R., 2009. The Importance of Shale Composition and Pore Structure upon Gas Storage Potential of Shale Gas Reservoirs. Marine and Petroleum Geology, 26(6):916-927. https://doi.org/10.1016/j.marpetgeo.2008.06.004 |
| Stasiuk, L. D., Snowdon, L. R., 1997. Fluorescence Micro-Spectrometry of Synthetic and Natural Hydrocarbon Fluid Inclusions:Crude Oil Chemistry, Density and Application to Petroleum Migration. Applied Geochemistry, 12(3):229-241. https://doi.org/10.1016/s0883-2927(96)00047-9 |
| Suárez-Ruiz, I., Flores, D., Mendonça Filho, J. G., et al., 2012. Review and Update of the Applications of Organic Petrology:Part 1, Geological Applications. International Journal of Coal Geology, 99:54-112. https://doi.org/10.1016/j.coal.2012.02.004 |
| Taylor, G. H., Teichmüller, M., Davis, A., et al., 1998. Organic Petrology. Gebrüder Borntraeger, Stuttgart, Berlin. 704 |
| Scott, A. C., 1999. Organic Petrology. A New Handbook Incorporating Some Revised Parts of Stach's Textbook of Coal Petrology. Gebrüder Borntraeger, Price D. M., Berlin |
| Thommes, M., Kaneko, K., Neimark, A. V., et al., 2015. Physisorption of Gases, with Special Reference to the Evaluation of Surface Area and Pore Size Distribution (IUPAC Technical Report). Pure and Applied Chemistry, 87(9/10):1051-1069. https://doi.org/10.1515/pac-2014-1117 |
| Tissot, B. P., Welte, D. H., 1984. Petroleum Formation and Occurrence, 2nd edn. Springer, Berlin |
| Valenza, J. J. II, Drenzek, N., Marques, F., et al., 2013. Geochemical Controls on Shale Microstructure. Geology, 41(5):611-614. https://doi.org/10.1130/g33639.1 |
| Videtich, P. E., Roger, K., 1988. Depositional, Diagenetic, Thermal, and Maturation Histories of Cretaceous Mishrif Formation, Fateh Field, Dubai. AAPG Bulletin, 72(10):1143-1159. https://doi.org/10.1306/703c996a-1707-11d7-8645000102c1865d |
| Waples, D. W., 2000. The Kinetics of In-Reservoir Oil Destruction and Gas Formation:Constraints from Experimental and Empirical Data, and from Thermodynamics. Organic Geochemistry, 31(6):553-575. https://doi.org/10.1016/s0146-6380(00)00023-1 |
| Washburn, E. W., 1921. The Dynamics of Capillary Flow. Physical Review, 17(3):273-283. https://doi.org/10.1103/physrev.17.273 |
| Washburn, E. W., 1921. Note on a Method of Determining the Distribution of Pore Sizes in a Porous Material. Proceedings of the National Academy of Sciences, 7(4):115-116. https://doi.org/10.1073/pnas.7(4):115 |
| Wood, J. M., Sanei, H., Haeri-Ardakani, O., et al., 2018. Solid Bitumen in the Montney Formation:Diagnostic Petrographic Characteristics and Significance for Hydrocarbon Migration. International Journal of Coal Geology, 198:48-62. https://doi.org/10.13039/100007605 |
| Wu, Z., He, S., He, X. P., et al., 2019. Pore Structure Characteristics and Comparisons of Upper Permian Longtan and Dalong Formation Transitional Facies Shale in Xiangzhong Lianyuan Depression. Earth Science, 44(11):3757-3772. https://doi.org/10.3799/dqkx.2019.084 (in Chinese with English Abstract) |
| Xia, J., Song, Z. G., Wang, S. B., et al., 2017. Preliminary Study of Pore Structure and Methane Sorption Capacity of the Lower Cambrian Shales from the North Guizhou Province. Journal of Natural Gas Science and Engineering, 38:81-93. https://doi.org/10.1016/j.jngse.2016.12.021 |
| Xiong, F. Y., Jiang, Z. X., Chen, J. F., et al., 2016. The Role of the Residual Bitumen in the Gas Storage Capacity of Mature Lacustrine Shale:A Case Study of the Triassic Yanchang Shale, Ordos Basin, China. Marine and Petroleum Geology, 69:205-215. https://doi.org/10.1016/j.marpetgeo.2015.10.022 |
| Xu, J., Sonnenberg, S. A., 2017. An SEM Study of Porosity in the Organic-rich Lower Bakken Member and Pronghorn Member, Bakken Formation, Williston Basin. Unconventional Resources Technology Conference, Austin, 24-26 July 2017. Society of Exploration Geophysicists, American Association of Petroleum Geologists, Society of Petroleum Engineers, 3213-3225 |
| Yang, R., He, S., Yi, J. Z., et al., 2016. Nano-Scale Pore Structure and Fractal Dimension of Organic-Rich Wufeng-Longmaxi Shale from Jiaoshiba Area, Sichuan Basin:Investigations Using FE-SEM, Gas Adsorption and Helium Pycnometry. Marine and Petroleum Geology, 70:27-45. https://doi.org/10.13039/501100004613 |
| Yang, R., He, S., Hu, Q. H., et al., 2017. Geochemical Characteristics and Origin of Natural Gas from Wufeng-Longmaxi Shales of the Fuling Gas Field, Sichuan Basin (China). International Journal of Coal Geology, 171:1-11. https://doi.org/10.13039/501100004613 |
| Zhao, S. F., Chen, W., Zhou, L., et al., 2019. Characteristics of Fluid Inclusions and Implications for the Timing of Hydrocarbon Accumulation in the Cretaceous Reservoirs, Kelasu Thrust Belt, Tarim Basin, China. Marine and Petroleum Geology, 99:473-487. https://doi.org/10.1016/j.marpetgeo.2018.10.041 |
| Zhao, Y. J., Chen, H. H., 2008. The Relationship between Fluorescence Colors of Oil Inclusions and Their Maturities. Earth Science, 33(1):91-96 (in Chinese with English Abstract) http://www.wanfangdata.com.cn/details/detail.do?_type=perio&id=dqkx200801012 |
| Zhang, J., He, S., Yi, J., 2014. Rock Thermo-Acoustic Emission and Basin Modeling Technologies Applied to the Study of Maximum Paleotemperatures and Thermal Maturity Histories of Lower Paleozoic Marine Shales in the Western Middle Yangtze Area. Acta Petrolei Sinica, 35(1):58-67 (in Chinese with English Abstract) doi: 10.1038/aps.2013.122 |
| Zhang, Q., Liu, R. H., Pang, Z. L., et al., 2016. Characterization of Microscopic Pore Structures in Lower Silurian Black Shale (S1l), Southeastern Chongqing, China. Marine and Petroleum Geology, 71:250-259. https://doi.org/10.1016/j.marpetgeo.2015.12.015 |
| Zhu, X. J., Cai, J. G., Wang, X. J., et al., 2014. Effects of Organic Components on the Relationships between Specific Surface Areas and Organic Matter in Mudrocks. International Journal of Coal Geology, 133:24-34. https://doi.org/10.1016/j.coal.2014.08.009 |
| 1. | Yuantao Tang, Kai Xue, Xianzhi Gao, et al. Origin, maturity and geochemistry of natural gas in the Yancheng Sag, Subei Basin, China: Insights from pyrolysis experiments and basin modeling. Journal of Asian Earth Sciences, 2025. doi:10.1016/j.jseaes.2025.106558 | |
| 2. | Zhongrui Wu, Ralf Littke, Shuo Qin, et al. Multi-Scale Pore Structure of Terrestrial, Transitional, and Marine Shales from China: Insights into Porosity Evolution with Increasing Thermal Maturity. Journal of Marine Science and Engineering, 2025, 13(3): 609. doi:10.3390/jmse13030609 | |
| 3. | Qian Zhang, Zhijun Jin, Ende Deng, et al. Accumulation and maturation of organic matter in shales: The coal-bearing Permian Longtan Formation at Tucheng Syncline, Southwestern Guizhou, China. Applied Geochemistry, 2025, 180: 106257. doi:10.1016/j.apgeochem.2024.106257 | |
| 4. | Lichen Zheng, Qiuyang Zhao, Michael J. Adams, et al. Molecular dynamics study of shale oil adsorption and diffusion behavior in reservoir nanopores: Impact of hydrocarbon composition and surface type. Journal of Molecular Liquids, 2024, 414: 126110. doi:10.1016/j.molliq.2024.126110 | |
| 5. | Jarosław Serafin, Bartosz Dziejarski, Carlos Solis, et al. Medium-pressure hydrogen storage on activated carbon derived from biomass conversion. Fuel, 2024, 363: 130975. doi:10.1016/j.fuel.2024.130975 | |
| 6. | Qiongyao Pu, Ping Wang, Hongmei Wang, et al. Development and influencing factors of middle‐deep tight sandstone reservoir ‘sweet spots’ in fault basin—Taking the Eocene Shahejie Formation in Suning area of Raoyang Sag in Bohai Bay basin as an example. Geological Journal, 2024, 59(6): 1861. doi:10.1002/gj.4974 | |
| 7. | Qizhang Fan, Peng Cheng, Haifeng Gai, et al. Effects of post-oil bitumen on the nanopore development of shales: New insights from a stepwise thermal simulation experiment on small shale plug samples. Marine and Petroleum Geology, 2024, 168: 107038. doi:10.1016/j.marpetgeo.2024.107038 | |
| 8. | Peng Liu, Qiuchen Xu, Dishi Shi, et al. Input and preservation of organic matter in the Upper Permian shale from the Lower Yangtze Platform, South China: evidence from organic and inorganic geochemistry. International Journal of Earth Sciences, 2024, 113(8): 1867. doi:10.1007/s00531-023-02369-4 | |
| 9. | Cao Yu, Qinglong Xu, Fancong Meng, et al. Study on the Adsorption Law of n-Pentane in Silica Slit Nanopores. ACS Omega, 2024. doi:10.1021/acsomega.4c06105 | |
| 10. | Linhao Zhang, Yifan Zhang, Mengdi Sun, et al. Quantifying Organic Matter and Its Pore Structure of Wufeng–Longmaxi Deep Shales by Small-Angle X-ray Scattering, Mercury Intrusion Capillary Pressure, and Field-Emission Scanning Electron Microscope. Energy & Fuels, 2024, 38(3): 1906. doi:10.1021/acs.energyfuels.3c03925 | |
| 11. | Xiaowen Guo, Tao Luo, Tian Dong, et al. Quantitative Estimation on Methane Storage Capacity of Organic-Rich Shales from the Lower Silurian Longmaxi Formation in the Eastern Sichuan Basin, China. Journal of Earth Science, 2023, 34(6): 1851. doi:10.1007/s12583-020-1394-7 | |
| 12. | Bei Liu. 泥页岩中有机质：类型、热演化与有机孔隙. Earth Science-Journal of China University of Geosciences, 2023, 48(12): 4641. doi:10.3799/dqkx.2022.130 | |
| 13. | Bei Liu, Juan Teng, Maria Mastalerz. Maceral Control on the Hydrocarbon Generation Potential of Lacustrine Shales: A Case Study of the Chang 7 Member of the Triassic Yanchang Formation, Ordos Basin, North China. Energies, 2023, 16(2): 636. doi:10.3390/en16020636 | |
| 14. | Xiaowen Guo, Xiaolin Zhao, Zhiliang He, et al. Organic Mesopore and Micropore Structures and Their Effects on Methane Adsorption in Marine Organic-Rich Shales. Energy & Fuels, 2023, 37(12): 8284. doi:10.1021/acs.energyfuels.3c01185 | |
| 15. | Guanping Wang, Zhijun Jin, Guangxiang Liu, et al. Pore system of the multiple lithofacies reservoirs in unconventional lacustrine shale oil formation. International Journal of Coal Geology, 2023, 273: 104270. doi:10.1016/j.coal.2023.104270 | |
| 16. | Juan Teng, Bei Liu, Maria Mastalerz, et al. Origin of organic matter and organic pores in the overmature Ordovician-Silurian Wufeng-Longmaxi Shale of the Sichuan Basin, China. International Journal of Coal Geology, 2022, 253: 103970. doi:10.1016/j.coal.2022.103970 | |
| 17. | Zhongrui Wu, Sheng He, Xincheng Li, et al. Comparative study on pore structure characteristics of marine and transitional facies shales: A case study of the Upper Permian Longtan Formation and Dalong Formation in the Lower Yangtze area, south China. Journal of Petroleum Science and Engineering, 2022, 215: 110578. doi:10.1016/j.petrol.2022.110578 | |
| 18. | Wei Fu, Wangshui Hu, Tongsheng Yi, et al. Fractal Dimension Analysis of Pores in Coal Reservoir and Their Impact on Petrophysical Properties: A Case Study in the Province of Guizhou, SW China. Minerals, 2022, 12(11): 1425. doi:10.3390/min12111425 | |
| 19. | Danish Khan, Longwei Qiu, Chao Liang, et al. Formation and Distribution of Different Pore Types in the Lacustrine Calcareous Shale: Insights from XRD, FE-SEM, and Low-Pressure Nitrogen Adsorption Analyses. ACS Omega, 2022, 7(12): 10820. doi:10.1021/acsomega.2c01001 | |
| 20. | Bei Liu, Maria Mastalerz, Juergen Schieber. SEM petrography of dispersed organic matter in black shales: A review. Earth-Science Reviews, 2022, 224: 103874. doi:10.1016/j.earscirev.2021.103874 | |
| 21. | Wei Li, Lee A. Stevens, Bo Zhang, et al. Combining molecular simulation and experiment to prove micropore distribution controls methane adsorption in kerogens. International Journal of Coal Geology, 2022, 261: 104092. doi:10.1016/j.coal.2022.104092 | |
| 22. | Zhongrui Wu, Sheng He, Zhiliang He, et al. Petrographical and geochemical characterization of the Upper Permian Longtan formation and Dalong Formation in the Lower Yangtze region, South China: Implications for provenance, paleoclimate, paleoenvironment and organic matter accumulation mechanisms. Marine and Petroleum Geology, 2022, 139: 105580. doi:10.1016/j.marpetgeo.2022.105580 | |
| 23. | Zhiliang He, Shuangjian Li, Yingqiang Li, et al. Multi-Directional and Multiphase Tectonic Modification, and Hydrocarbon Differential Enrichment in the Middle-Upper Yangtze Region. Journal of Earth Science, 2022, 33(5): 1246. doi:10.1007/s12583-022-1738-6 | |
| 24. | Jiangyan Yuan, Wen Su, Xinmeng Hu, et al. Application of Raman imaging and scanning electron microscopy techniques for the advanced characterization of geological samples. Microscopy Research and Technique, 2022, 85(7): 2729. doi:10.1002/jemt.24093 | |
| 25. | Shaomin Zhang, Zhenglu Xiao, Rui Zhang, et al. Geochemical characteristics and shale oil exploration potential of the Da’anzhai Member in the Sichuan Basin, southwest China. Interpretation, 2022, 10(3): T469. doi:10.1190/INT-2021-0115.1 | |
| 26. | Deependra Pratap Singh, David A. Wood, Vivek Singh, et al. Impact of Particle Crush-Size and Weight on Rock-Eval S2, S4, and Kinetics of Shales. Journal of Earth Science, 2022, 33(2): 513. doi:10.1007/s12583-021-1452-9 | |
| 27. | Zhi Yang, Caineng Zou, Songtao Wu, et al. Characteristics, Types, and Prospects of Geological Sweet Sections in Giant Continental Shale Oil Provinces in China. Journal of Earth Science, 2022, 33(5): 1260. doi:10.1007/s12583-022-1735-9 | |
| 28. | Haijiao Fu, Detian Yan, Chenpeng Yao, et al. Pore Structure and Multi-Scale Fractal Characteristics of Adsorbed Pores in Marine Shale: A Case Study of the Lower Silurian Longmaxi Shale in the Sichuan Basin, China. Journal of Earth Science, 2022, 33(5): 1278. doi:10.1007/s12583-021-1602-0 | |
| 29. | Shuo Qin, Wanzhong Shi, Ren Wang, et al. 鄂尔多斯盆地杭锦旗地区盒一段致密砂岩储层特征及其主控因素. Earth Science-Journal of China University of Geosciences, 2022, 47(5): 1604. doi:10.3799/dqkx.2022.007 | |
| 30. | Yu Zeng, Yuguang Hou, Dongfeng Hu, et al. 川东南盆缘常压区页岩裂缝脉体特征及古压力演化. Earth Science-Journal of China University of Geosciences, 2022, 47(5): 1819. doi:10.3799/dqkx.2022.011 | |
| 31. | Yanming Zhao, Ping Gao, Qin Zhou, et al. A Review of the Heterogeneity of Organic-Matter-Hosted Pores in Shale Reservoirs. Energies, 2022, 15(23): 8805. doi:10.3390/en15238805 | |
| 32. | Mohammad Parandavar, Jalil Sadouni. Evaluation of Organic Matter Richness of Eocene Strata Based on Calcareous Nannofossils and Rock-Eval Analysis in North Dezful, Iran. Journal of Earth Science, 2021, 32(4): 1022. doi:10.1007/s12583-020-1091-6 | |
| 33. | Rui Yang, Aoqi Jia, Sheng He, et al. Pore Structure Characterization and Reservoir Quality Evaluation of Analcite-Rich Shale Oil Reservoir from the Bohai Bay Basin. Energy & Fuels, 2021, 35(11): 9349. doi:10.1021/acs.energyfuels.1c00811 | |
| 34. | Sile Wei, Sheng He, Mingyi Hu, et al. Supercritical High-Pressure Methane Adsorption on the Lower Cambrian Shuijingtuo Shale in the Huangling Anticline Area, South China: Adsorption Behavior, Storage Characteristics, and Geological Implications. Energy & Fuels, 2021, 35(24): 19973. doi:10.1021/acs.energyfuels.1c02702 | |
| 35. | Ang Li, Xuanlong Shan, Kaiping Luo, et al. A new type of unconventional gas reservoir from the nodular limestones of the Middle Permian Maokou Formation in the south‐eastern Sichuan Basin, south‐west China. Geological Journal, 2021, 56(11): 5426. doi:10.1002/gj.4250 | |
| 36. | Jijia Liao, Ning Zhao, Yang Chen, et al. Constraints of sedimentary structures on key parameters of shale gas reservoirs: A case study of the Wufeng and Longmaxi formations of the Ordovician‐Silurian transition in Luzhou area, Sichuan Basin, southwestern China. Geological Journal, 2021, 56(11): 5691. doi:10.1002/gj.4265 | |
| 37. | Linhao Zhang, Mengdi Sun, Qi Lv, et al. Evolution of Shale Microstructure under in Situ Heat Treatment: Synchrotron Small-Angle X-ray Scattering. Energy & Fuels, 2021, 35(5): 4345. doi:10.1021/acs.energyfuels.1c00091 | |
| 38. | Xiaohua Jiang, Songtao Wu, Lianhua Hou, et al. Porosity Evolution In Lacustrine Organic-Matter-Rich Shales With High Claly Minerals Content. Frontiers in Earth Science, 2021, 9 doi:10.3389/feart.2021.766093 | |
| 39. | Wei Yang, Sheng He, Gangyi Zhai, et al. Maturity Assessment of the Lower Cambrian and Sinian Shales Using Multiple Technical Approaches. Journal of Earth Science, 2021, 32(5): 1262. doi:10.1007/s12583-020-1329-3 | |
| 40. | Guanzhong Shi, Chuanyan Huang, Shang Xu, et al. Source to sink systems of the upper permian longtan formation in the lower yangtze region, China: New insights from detrital monazite U–Pb ages and heavy mineral chemistry. Marine and Petroleum Geology, 2021, 126: 104928. doi:10.1016/j.marpetgeo.2021.104928 | |
| 41. | Yongchao Wang, Yanqing Xia, Zihui Feng, et al. Microscale Evaluation of Tight Oil Mobility: Insights from Pore Network Simulation. Energies, 2021, 14(15): 4580. doi:10.3390/en14154580 | |
| 42. | Shengli Li, Y. Zee Ma, Ernest Gomez. Importance of Modeling Heterogeneities and Correlation in Reservoir Properties in Unconventional Formations: Examples of Tight Gas Reservoirs. Journal of Earth Science, 2021, 32(4): 809. doi:10.1007/s12583-021-1430-2 | |
| 43. | Qiyang Gou, Shang Xu, Fang Hao, et al. Differences in the Nanopore Structure of Organic-Rich Shales with Distinct Sedimentary Environments and Mineral Compositions. Energy & Fuels, 2021, 35(20): 16562. doi:10.1021/acs.energyfuels.1c02555 | |
| 44. | Linhao Zhang, Ze Deng, Mengdi Sun, et al. Characterization of Closed Pores in Longmaxi Shale by Synchrotron Small-Angle X-ray Scattering. Energy & Fuels, 2021, 35(8): 6738. doi:10.1021/acs.energyfuels.1c00190 | |
| 45. | Sile Wei, Sheng He, Zhejun Pan, et al. Characteristics and evolution of pyrobitumen-hosted pores of the overmature Lower Cambrian Shuijingtuo Shale in the south of Huangling anticline, Yichang area, China: Evidence from FE-SEM petrography. Marine and Petroleum Geology, 2020, 116: 104303. doi:10.1016/j.marpetgeo.2020.104303 |
Figures(14) / Tables(2)
Copyright © 2013-2020 Journal of Earth Science 鄂ICP备15021562号-2
Tel: +86-27-67885075 Fax: +86-27-67885075 E-mail: xbb@cug.edu.cn
Address: Editorial Office of Journal, China University of Geosciences, Yujiashan, Wuhan, Hubei 430074, P. R. China
Supported by:
Beijing Renhe Information Technology Co. Ltd
E-mail:
info@rhhz.net
Zhongrui Wu, Sheng He, Yuanjia Han, Gangyi Zhai, Xipeng He, Zhi Zhou. Effect of Organic Matter Type and Maturity on Organic Matter Pore Formation of Transitional Facies Shales: A Case Study on Upper Permian Longtan and Dalong Shales in Middle Yangtze Region, China. Journal of Earth Science, 2020, 31(2): 368-384. doi: 10.1007/s12583-019-1237-6
| Sample | Depth (m) | Formation | Lithofacies | TOC (%) | Ro (%) | Kerogen type | Mineral composition (wt.%) | ||||||
| Quartz | Feldspar | Dolomite | Calcite | Clay | Pyrite | Other | |||||||
| XY-1 | 600.22 | Dalong | Black calcareous shale | 3.69 | 1.34 | Ⅱ | 60 | 6 | 2 | 10 | 20 | 2 | |
| XY-2 | 602.67 | Dalong | 2.72 | / | Ⅱ | 63 | 3 | 2 | 23 | 8 | 1 | ||
| XY-3 | 608.08 | Dalong | 4.96 | 1.22 | Ⅱ | 45 | 7 | 4 | 19 | 23 | 2 | ||
| XY-4 | 612.76 | Dalong | 5.09 | 1.37 | Ⅱ | 49 | 7 | 1 | 22 | 18 | 3 | ||
| XY-5 | 624.87 | Dalong | 5.07 | / | Ⅱ | 33 | 7 | 2 | 19 | 36 | 3 | ||
| XY-6 | 629.59 | Dalong | 3.13 | / | Ⅱ | 55 | 4 | 6 | 20 | 13 | 2 | ||
| XY-7 | 631.18 | Dalong | 6.79 | / | Ⅱ | 49 | 5 | / | 10 | 33 | 3 | ||
| XY-8 | 641.78 | Dalong | 3.00 | 1.27 | Ⅱ | 29 | 8 | / | 38 | 21 | 4 | ||
| XY-9 | 685.07 | Longtan | Grey-black silt mudstone | 1.72 | / | Ⅲ | 53 | 16 | / | / | 31 | / | |
| XY-10 | 689.10 | Longtan | Black-mudstone | 7.17 | / | Ⅲ | 14 | 5 | / | 2 | 57 | / | 22 (Siderite) |
| XY-11 | 692.66 | Longtan | Black mudstone | 10.29 | 1.41 | Ⅲ | 32 | 3 | 5 | / | 60 | / | |
| XY-12 | 697.81 | Longtan | Coal | 38.41 | 1.43 | Ⅲ | 40 | / | / | / | 48 | 12 | |
| EJ-1 | 827.87 | Dalong | Black shale | 5.52 | 2.62 | Ⅱ | 12 | 30 | / | 40 | 14 | 2 | 2 (Gypsum) |
| EJ-2 | 845.00 | Dalong | 6.14 | 2.84 | Ⅱ | 70 | 7 | 1 | 8 | 11 | 3 | ||
| EJ-3 | 850.75 | Dalong | 11.25 | 2.97 | Ⅱ | 76 | 7 | 3 | 9 | 4 | 1 | ||
| EJ-4 | 856.46 | Dalong | 7.62 | / | Ⅱ | 52 | 10 | 1 | 8 | 26 | 3 | ||
DownLoad:
CSV
| Sample ID | Formation | TOC (wt.%) | DFT micropore volume (cm3/g) | BJH mesopore volume (cm3/g) | BJH macropore volume (cm3/g) | Hg porosity (%) |
| XY-1 | Dalong | 3.69 | 0.004 | 0.003 | 0.004 | / |
| XY-2 | Dalong | 2.72 | 0.003 | 0.003 | 0.004 | / |
| XY-3 | Dalong | 4.96 | 0.005 | 0.004 | 0.005 | 0.53 |
| XY-4 | Dalong | 5.09 | 0.004 | 0.003 | 0.007 | 0.31 |
| XY-5 | Dalong | 5.07 | 0.003 | 0.002 | 0.003 | 0.18 |
| XY-6 | Dalong | 3.13 | 0.002 | 0.003 | 0.005 | 0.26 |
| XY-7 | Dalong | 6.79 | 0.004 | 0.003 | 0.004 | / |
| XY-8 | Dalong | 3.00 | 0.003 | 0.004 | 0.004 | / |
| XY-9 | Longtan | 1.72 | 0.004 | 0.007 | 0.007 | 1.21 |
| XY-10 | Longtan | 7.17 | 0.010 | 0.012 | 0.004 | / |
| XY-11 | Longtan | 10.29 | 0.009 | 0.013 | 0.006 | 1.53 |
| XY-12 | Longtan | 38.41 | 0.010 | 0.002 | 0.004 | / |
| EJ-1 | Dalong | 5.52 | 0.007 | 0.013 | 0.008 | 0.85 |
| EJ-2 | Dalong | 6.14 | 0.008 | 0.013 | 0.006 | 2.12 |
| EJ-3 | Dalong | 11.25 | 0.011 | 0.019 | 0.013 | 5.42 |
| EJ-4 | Dalong | 7.62 | 0.010 | 0.016 | 0.007 | 1.63 |
DownLoad:
CSV
| Sample | Depth (m) | Formation | Lithofacies | TOC (%) | Ro (%) | Kerogen type | Mineral composition (wt.%) | ||||||
| Quartz | Feldspar | Dolomite | Calcite | Clay | Pyrite | Other | |||||||
| XY-1 | 600.22 | Dalong | Black calcareous shale | 3.69 | 1.34 | Ⅱ | 60 | 6 | 2 | 10 | 20 | 2 | |
| XY-2 | 602.67 | Dalong | 2.72 | / | Ⅱ | 63 | 3 | 2 | 23 | 8 | 1 | ||
| XY-3 | 608.08 | Dalong | 4.96 | 1.22 | Ⅱ | 45 | 7 | 4 | 19 | 23 | 2 | ||
| XY-4 | 612.76 | Dalong | 5.09 | 1.37 | Ⅱ | 49 | 7 | 1 | 22 | 18 | 3 | ||
| XY-5 | 624.87 | Dalong | 5.07 | / | Ⅱ | 33 | 7 | 2 | 19 | 36 | 3 | ||
| XY-6 | 629.59 | Dalong | 3.13 | / | Ⅱ | 55 | 4 | 6 | 20 | 13 | 2 | ||
| XY-7 | 631.18 | Dalong | 6.79 | / | Ⅱ | 49 | 5 | / | 10 | 33 | 3 | ||
| XY-8 | 641.78 | Dalong | 3.00 | 1.27 | Ⅱ | 29 | 8 | / | 38 | 21 | 4 | ||
| XY-9 | 685.07 | Longtan | Grey-black silt mudstone | 1.72 | / | Ⅲ | 53 | 16 | / | / | 31 | / | |
| XY-10 | 689.10 | Longtan | Black-mudstone | 7.17 | / | Ⅲ | 14 | 5 | / | 2 | 57 | / | 22 (Siderite) |
| XY-11 | 692.66 | Longtan | Black mudstone | 10.29 | 1.41 | Ⅲ | 32 | 3 | 5 | / | 60 | / | |
| XY-12 | 697.81 | Longtan | Coal | 38.41 | 1.43 | Ⅲ | 40 | / | / | / | 48 | 12 | |
| EJ-1 | 827.87 | Dalong | Black shale | 5.52 | 2.62 | Ⅱ | 12 | 30 | / | 40 | 14 | 2 | 2 (Gypsum) |
| EJ-2 | 845.00 | Dalong | 6.14 | 2.84 | Ⅱ | 70 | 7 | 1 | 8 | 11 | 3 | ||
| EJ-3 | 850.75 | Dalong | 11.25 | 2.97 | Ⅱ | 76 | 7 | 3 | 9 | 4 | 1 | ||
| EJ-4 | 856.46 | Dalong | 7.62 | / | Ⅱ | 52 | 10 | 1 | 8 | 26 | 3 | ||
| Sample ID | Formation | TOC (wt.%) | DFT micropore volume (cm3/g) | BJH mesopore volume (cm3/g) | BJH macropore volume (cm3/g) | Hg porosity (%) |
| XY-1 | Dalong | 3.69 | 0.004 | 0.003 | 0.004 | / |
| XY-2 | Dalong | 2.72 | 0.003 | 0.003 | 0.004 | / |
| XY-3 | Dalong | 4.96 | 0.005 | 0.004 | 0.005 | 0.53 |
| XY-4 | Dalong | 5.09 | 0.004 | 0.003 | 0.007 | 0.31 |
| XY-5 | Dalong | 5.07 | 0.003 | 0.002 | 0.003 | 0.18 |
| XY-6 | Dalong | 3.13 | 0.002 | 0.003 | 0.005 | 0.26 |
| XY-7 | Dalong | 6.79 | 0.004 | 0.003 | 0.004 | / |
| XY-8 | Dalong | 3.00 | 0.003 | 0.004 | 0.004 | / |
| XY-9 | Longtan | 1.72 | 0.004 | 0.007 | 0.007 | 1.21 |
| XY-10 | Longtan | 7.17 | 0.010 | 0.012 | 0.004 | / |
| XY-11 | Longtan | 10.29 | 0.009 | 0.013 | 0.006 | 1.53 |
| XY-12 | Longtan | 38.41 | 0.010 | 0.002 | 0.004 | / |
| EJ-1 | Dalong | 5.52 | 0.007 | 0.013 | 0.008 | 0.85 |
| EJ-2 | Dalong | 6.14 | 0.008 | 0.013 | 0.006 | 2.12 |
| EJ-3 | Dalong | 11.25 | 0.011 | 0.019 | 0.013 | 5.42 |
| EJ-4 | Dalong | 7.62 | 0.010 | 0.016 | 0.007 | 1.63 |
DownLoad:
DownLoad:
