Sulfur Isotope Fractionation in Metasedimentary Rocks during Prograde Metamorphism

Dongjian Ouyang; Guangyu Huang; Qiuli Li; Jinghui Guo; Mingguo Zhai

doi:10.1007/s12583-025-0330-2

Volume 37 Issue 1

Feb 2026

Turn off MathJax

Article Contents

Journal of Earth Science > 2026 > 37(1): 50-59.

Dongjian Ouyang, Guangyu Huang, Qiuli Li, Jinghui Guo, Mingguo Zhai. Sulfur Isotope Fractionation in Metasedimentary Rocks during Prograde Metamorphism. Journal of Earth Science, 2026, 37(1): 50-59. doi: 10.1007/s12583-025-0330-2

Citation:

Dongjian Ouyang, Guangyu Huang, Qiuli Li, Jinghui Guo, Mingguo Zhai. Sulfur Isotope Fractionation in Metasedimentary Rocks during Prograde Metamorphism. Journal of Earth Science, 2026, 37(1): 50-59. doi: 10.1007/s12583-025-0330-2

Citation:

PDF( 8403 KB)

Sulfur Isotope Fractionation in Metasedimentary Rocks during Prograde Metamorphism

doi: 10.1007/s12583-025-0330-2

Dongjian Ouyang^{1
,
,
,},
Guangyu Huang^{1
,
,
,},
Qiuli Li^{1, 2
,},
Jinghui Guo^{1, 2},
Mingguo Zhai^{1, 2
,}

1.
State Key Laboratory of Lithospheric and Environmental Coevolution, Institute of Geology and Geophysics, Chinese Academy of Sciences, Beijing 100029, China
2.
College of Earth and Planetary Sciences, University of Chinese Academy of Sciences, Beijing 100049, China

More Information

Corresponding author: Dongjian Ouyang,ouyang@mail.iggcas.ac.cn; Guangyu Huang,huangguangyu@mail.iggcas.ac.cn
Received Date: 02 Apr 2025
Accepted Date: 03 Jul 2025
Issue Publish Date: 28 Feb 2026

Abstract

Abstract

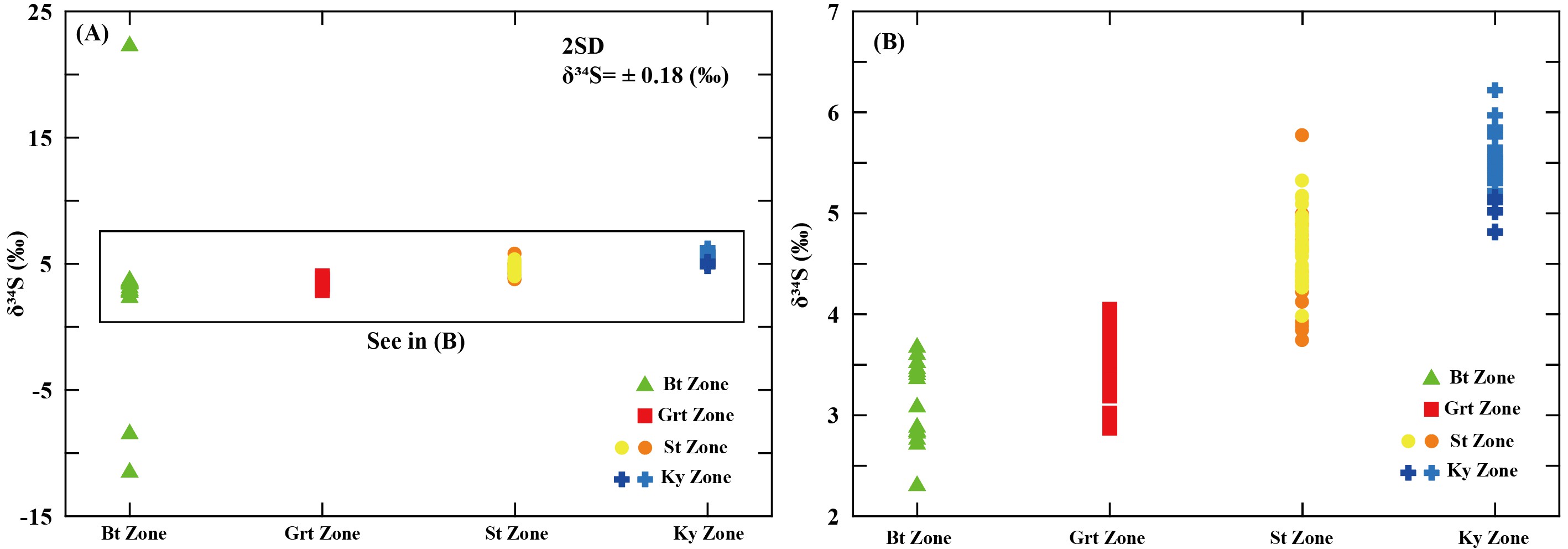

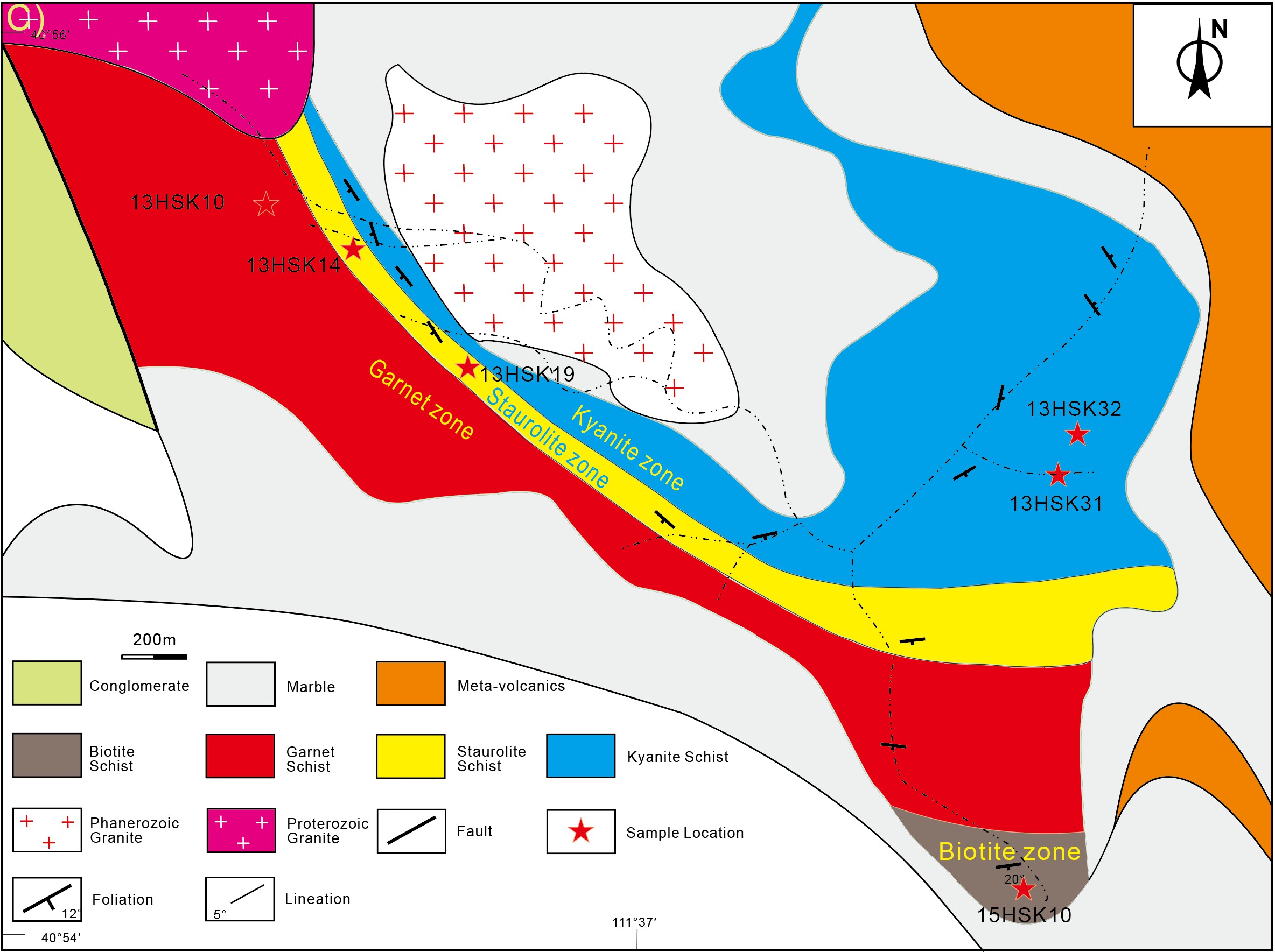

Sulfur is closely associated with various types of ore deposits, particularly orogenic gold (Au) systems, where sulfur-bearing melts and fluids play a critical role in transporting ore-forming elements essential for ore formation. The widely accepted metamorphic devolatilization model suggests that compositionally fertile sedimentary rocks serve as potential gold sources. Therefore, understanding sulfur behavior during prograde metamorphism is essential for elucidating the mechanisms underlying metal activation and mobility. In this study, we conducted in-situ sulfur isotope (δ³⁴S) analyses using secondary ion mass spectrometry (SIMS) on samples from the Hongshankou area, a representative Barrovian-type metamorphic sequence characterized by intermediate pressure-temperature (P-T) conditions. This sequence comprises the biotite, garnet, staurolite, and kyanite zones. Our results show a systematic increase in δ³⁴S values (from 3.1‰ to 5.5‰) coupled with a progressive decrease in total sulfur content (from 320 ppm to 165 ppm) as metamorphic grade increases. The most pronounced sulfur mobilization occurs between the garnet and staurolite zones. In all analyzed samples, Au or Au-bearing minerals predominantly occur along the edges or within pyrite grains, highlighting the critical role of pyrite breakdown in controlling gold mobility. Thus, sulfur isotope fractionation provides robust constraints for quantitatively assessing sulfur mobility during metamorphism. These findings reinforce the concept that metasedimentary rocks and their metamorphic fluids represent fertile sources of Au and other metals enriched in orogenic gold deposits.
- sulfur,
- sulfur isotope,
- Barrovian-type metamorphic series,
- gold,
- gold deposits,
- North China

Electronic Supplementary Materials: Supplementary Materials (Tables S1–S5) are available in the online version of this article at https://doi.org/10.1007/s12583-025-0330-2.
Conflict of Interest
The authors declare that they have no conflict of interest.

FullText(HTML)

References(36)

References

Alirezaei, S., Cameron, E. M., 2001. Variations of Sulfur Isotopes in Metamorphic Rocks from Bamble Sector, Southern Norway: A Laser Probe Study. Chemical Geology, 181(1/2/3/4): 23–45. https://doi.org/10.1016/S0009-2541(01)00266-2

Andreae, M. O., 1974. Chemical and Stable Isotope Composition of the High Grade Metamorphic Rocks from the Arendal Area, Southern Norway. Contributions to Mineralogy and Petrology, 47(4): 299–316. https://doi.org/10.1007/BF00390152

Bucholz, C. E., Biasi, J. A., Beaudry, P., et al., 2020. Sulfur Isotope Behavior during Metamorphism and Anatexis of Archean Sedimentary Rocks: A Case Study from the Ghost Lake Batholith, Ontario, Canada. Earth and Planetary Science Letters, 549: 116494. https://doi.org/10.1016/j.epsl.2020.116494

Canfield, D. E., 2001. Biogeochemistry of Sulfur Isotopes. In: Valley, J. W., Cole, D. R., Stable Isotope Geochemistry. Reviews in Mineralogy & Geochemistry, 43: 607–636.https://doi.org/10.1515/9781501508745-015

Coldebella, B., LaFlamme, C., Malta, I. S., et al., 2025. The Chemical and Isotopic Characterization of the Pyrite to Pyrrhotite Desulfidation Reaction across the Metamorphic Gradient of a Metasedimentary Basin. Geochimica et Cosmochimica Acta, 392: 119–136. https://doi.org/10.1016/j.gca.2024.12.027

Condie, K. C., Boryta, M. D., Liu, J. Z., et al., 1992. The Origin of Khondalites: Geochemical Evidence from the Archean to Early Proterozoic Granulite Belt in the North China Craton. Precambrian Research, 59(3/4): 207–223. https://doi.org/10.1016/0301-9268(92)90057-U

Cui, W. L., Guo, J. H., Huang, G. Y., et al., 2022. Gold Mobilization during Prograde Metamorphism of Clastic Sedimentary Rocks: An Example from the Liaohe Group in the Jiao-Liao-Ji Belt, North China Craton. Ore Geology Reviews, 140: 104624. https://doi.org/10.1016/j.oregeorev.2021.104624

Ding, T., Valkiers, S., Kipphardt, H., et al., 2001. Calibrated Sulfur Isotope Abundance Ratios of Three IAEA Sulfur Isotope Reference Materials and V-CDT with a Reassessment of the Atomic Weight of Sulfur. Geochimica et Cosmochimica Acta, 65(15): 2433–2437. https://doi.org/10.1016/S0016-7037(01)00611-1

Farquhar, J., Bao, H. M., Thiemens, M., 2000. Atmospheric Influence of Earth’s Earliest Sulfur Cycle. Science, 289(5480): 756–759. https://doi.org/10.1126/science.289.5480.756

Farquhar, J., Cliff, J., Zerkle, A. L., et al., 2013. Pathways for Neoarchean Pyrite Formation Constrained by Mass-Independent Sulfur Isotopes. Proceedings of the National Academy of Sciences of the United States of America, 110(44): 17638–17643.https://www.pnas.org/doi/10.1073/pnas.1218851110 doi: 10.1073/pnas.1218851110

Farsang, S., Zajacz, Z., 2025. Sulfur Species and Gold Transport in Arc Magmatic Fluids. Nature Geoscience, 18(1): 98–104. https://doi.org/10.1038/s41561-024-01601-3

Goldfarb, R. J., Groves, D. I., Gardoll, S., 2001. Orogenic Gold and Geologic Time: A Global Synthesis. Ore Geology Reviews, 18(1/2): 1–75. https://doi.org/10.1016/S0169-1368(01)00016-6

Groves, D. I., Goldfarb, R. J., Robert, F., et al., 2003. Gold Deposits in Metamorphic Belts: Overview of Current Understanding, Outstanding Problems, Future Research, and Exploration Significance. Economic Geology, 98(1): 1–29. https://doi.org/10.2113/gsecongeo.98.1.1

Hronsky, J. M. A., Groves, D. I., Loucks, R. R., et al., 2012. A Unified Model for Gold Mineralisation in Accretionary Orogens and Implications for Regional-Scale Exploration Targeting Methods. Mineralium Deposita, 47(4): 339–358. https://doi.org/10.1007/s00126-012-0402-y

Huang, G. Y., Jiao, S. J., Guo, J. H., et al., 2016. P-T-t Constraints of the Barrovian-Type Metamorphic Series in the Khondalite Belt of the North China Craton: Evidence from Phase Equilibria Modeling and Zircon U-Pb Geochronology. Precambrian Research, 283: 125–143. https://doi.org/10.1016/j.precamres.2016.07.011

Jiang, S. -Y., Ma, Y., Liu, D. L., et al., 2023. Orogenic Gold Deposits: Mineralization Mechanism and Research Perspectives. Journal of Earth Science, 34(6): 1758–1761. https://doi.org/10.1007/s12583-023-2005-1

Jin, W., Li, S. X., Liu, X. S., 1991. The Metamorphic Dynamics of Early Precambrian High-Grade Metamorphic Rocks Series in Daqing-Ulashan Area, Inner Mongolia. Acta Petrologica Sinica, 7(4): 27–35 (in Chinese with English Abstract)

Lin, C. G., Yao, X. F., Mao, J. W., et al., 2023. Source of Ore-Forming Fluid and Material in the Baiyun Gold Deposit, Liaoning Province, NE China: Constraints from H-O-S-Pb Isotopes and In-Situ Analyses of Au-Bearing Pyrites. Journal of Earth Science, 34(1): 1–19. https://doi.org/10.1007/s12583-021-1420-4

Lu, L. Z., Jin, S. Q., Xu, X. C., et al., 1992. The Genesis of Early Precambrian Khondalite Series in Southeastern Inner Mongolia and Its Potential Mineral Resources. Jilin Science and Technology Publishing House, Changchun. 4–121 (in Chinese)

Ma, X. H., Zeng, Q. W., Tao, S. Y., et al., 2021. Mineralogical Characteristics and In-Situ Sulfur Isotopic Analysis of Gold-Bearing Sulfides from the Qilishan Gold Deposit in the Jiaodong Peninsula, China. Journal of Earth Science, 32(1): 116–126. https://doi.org/10.1007/s12583-020-1370-2

Ohmoto, H, Rye, R. O., 1979. Isotopes of Sulfur and Carbon. In: Barnes H. L., ed., Geochemistry of Hydrothermal Ore Deposits: 2nd Edition. Wiley, New York. 509–567

Phillips, G. N., Powell, R., 2009. Formation of Gold Deposits: Review and Evaluation of the Continuum Model. Earth-Science Reviews, 94(1/2/3/4): 1–21. https://doi.org/10.1016/j.earscirev.2009.02.002

Phillips, G. N., Powell, R., 2010. Formation of Gold Deposits: A Metamorphic Devolatilization Model. Journal of Metamorphic Geology, 28(6): 689–718. https://doi.org/10.1111/j.1525-1314.2010.00887.x

Pitcairn, I. K., Leventis, N., Beaudoin, G., et al., 2021. A Metasedimentary Source of Gold in Archean Orogenic Gold Deposits. Geology, 49(7): 862–866. https://doi.org/10.1130/g48587.1

Pitcairn, I. K., Skelton, A. D. L., Wohlgemuth-Ueberwasser, C. C., 2015. Mobility of Gold during Metamorphism of the Dalradian in Scotland. Lithos, 233: 69–88. https://doi.org/10.1016/j.lithos.2015.05.006

Poulson, S. R., Ohmoto, H., 1990. An Evaluation of the Solubility of Sulfide Sulfur in Silicate Melts from Experimental Data and Natural Samples. Chemical Geology, 85(1/2): 57–75. https://doi.org/10.1016/0009-2541(90)90123-O

Richards, J. P., 2009. Postsubduction Porphyry Cu-Au and Epithermal Au Deposits: Products of Remelting of Subduction-Modified Lithosphere. Geology, 37(3): 247–250. https://doi.org/10.1130/g25451a.1

Tomkins, A. G., 2010. Windows of Metamorphic Sulfur Liberation in the Crust: Implications for Gold Deposit Genesis. Geochimica et Cosmochimica Acta, 74(11): 3246–3259. https://doi.org/10.1016/j.gca.2010.03.003

Toulmin, P., Barton, P. B., 1964. A Thermodynamic Study of Pyrite and Pyrrhotite. Geochimica et Cosmochimica Acta, 28(5): 641–671. https://doi.org/10.1016/0016-7037(64)90083-3

Viete, D. R., Forster, M. A., Lister, G. S., 2011. The Nature and Origin of the Barrovian Metamorphism, Scotland: ⁴⁰Ar/³⁹Ar Apparent Age Patterns and the Duration of Metamorphism in the Biotite Zone. Journal of the Geological Society, 168(1): 133–146. https://doi.org/10.1144/0016-76492009-164

Wang, J. P., Liu, Z. J., Liu, J. J., et al., 2018. Trace Element Compositions of Pyrite from the Shuangwang Gold Breccias, Western Qinling Orogen, China: Implications for Deep Ore Prediction. Journal of Earth Science, 29(3): 564–572. https://doi.org/10.1007/s12583-017-0751-7

Wang, Z. C., Cheng, H., Zong, K. Q., et al., 2020. Metasomatized Lithospheric Mantle for Mesozoic Giant Gold Deposits in the North China Craton. Geology, 48(2): 169–173. https://doi.org/10.1130/g46662.1

Zhao, G. C., Cawood, P. A., Li, S. Z., et al., 2012. Amalgamation of the North China Craton: Key Issues and Discussion. Precambrian Research, 222/223: 55–76. https://doi.org/10.1016/j.precamres.2012.09.016

Zhao, G. C., Sun, M., Wilde, S. A., et al., 2005. Late Archean to Paleoproterozoic Evolution of the North China Craton: Key Issues Revisited. Precambrian Research, 136(2): 177–202. https://doi.org/10.1016/j.precamres.2004.10.002

Zhao, G. C., Wilde, S. A., Cawood, P. A., et al., 1999. Tectonothermal History of the Basement Rocks in the Western Zone of the North China Craton and Its Tectonic Implications. Tectonophysics, 310(1/2/3/4): 37–53. https://doi.org/10.1016/S0040-1951(99)00152-3

Zhong, C. T., Xi, Z., Zhao, W. K., et al., 2005. Types, Metallotects and Exploration Direction of the Gold Deposit in Daqingshan Mountain, Inner Mongolia. Geological Survey and Research, 28(4): 240–249 (in Chinese with English Abstract)
