| Citation: | Huayu Lu, Marzieh Mokarram. Deep Learning and Electromagnetic Wave Reflection-Based Automatic Detection of Sand Dune Movement and Assessment of Its Environmental Impact on Renewable Energy Plants. Journal of Earth Science, 2026, 37(4): 1777-1788. doi: 10.1007/s12583-025-0296-0
|

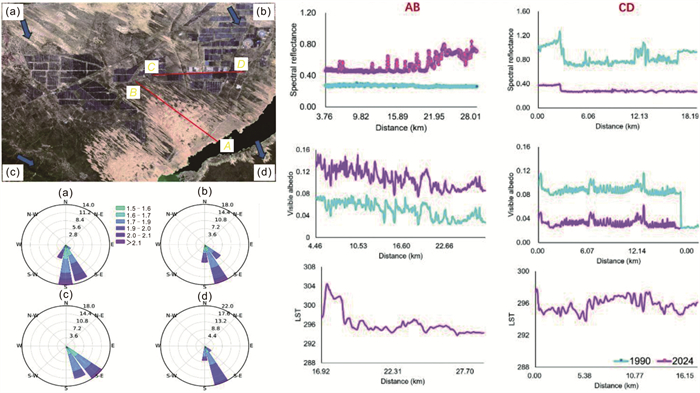

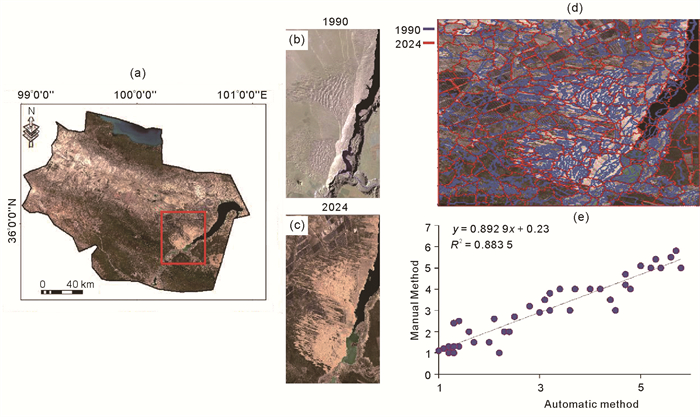

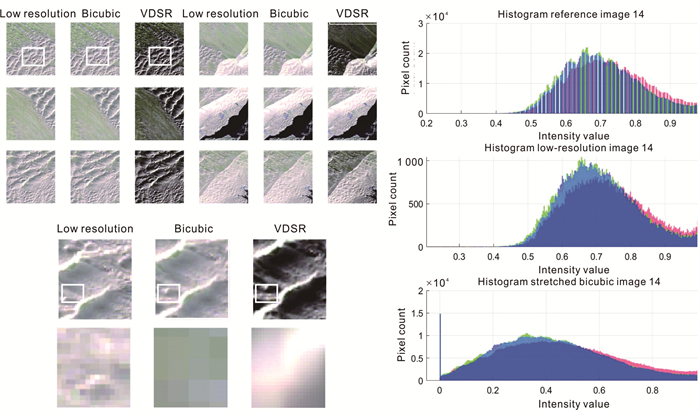

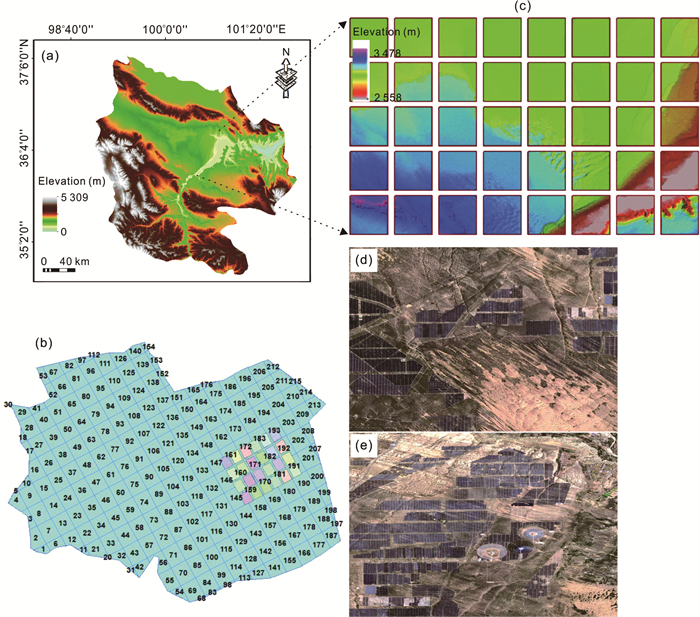

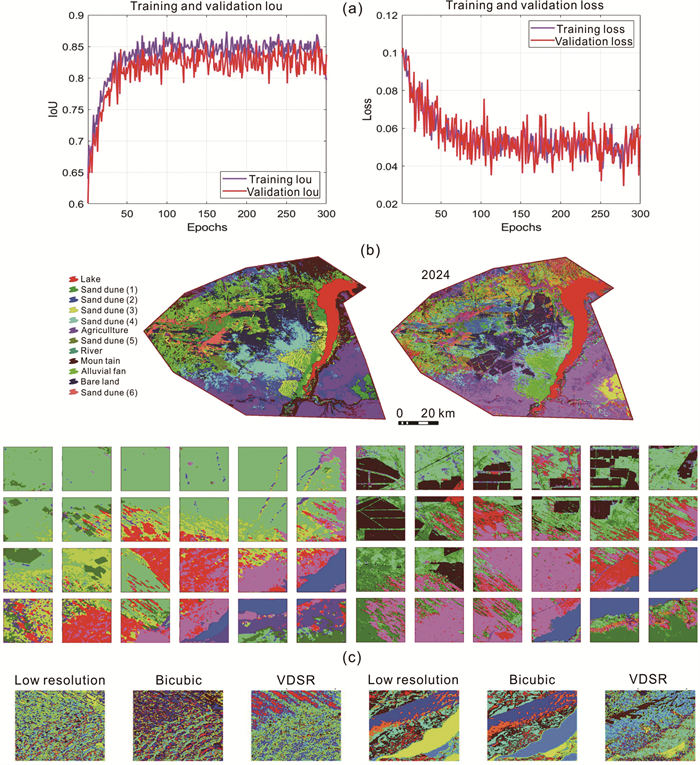

Sand dune movement threatens surrounding landscapes and infrastructures, especially like renewable energy plants. This study aims to predict sand dune movement and assess its risks to solar power plants in the southern Gobi Desert, Qinghai Province, China. This study integrates advanced methodologies, including the very deep super-resolution (VDSR) neural network for enhancing satellite image resolution, the multi-resolution segmentation (MRS) method for optimal dune type segmentation, the U-Net neural network for classifying and delineating desert landforms, and the long short-term memory (LSTM) method for forecasting climate parameters to assess dune movement and risks to solar power plants. The results demonstrate that the neural network significantly improves image resolution and enables clearer visualization of landscape features. When combined with MRS and U-Net, this approach accurately identifies and delineates sand dunes and solar panels, which achieve precise separation of these features in the imagery. Furthermore, the LSTM method predicts a shift in wind direction toward the south and southeast—specifically between 134 and 136 degrees—in the coming years, with wind speeds ranging from 1 to 3 m/s, which poses the greatest risk to solar panels in the northern parts of the region compared to other observation points.
|
Akbaş, C. E., Kozubek, M., 2020. Condensed U-Net (Cu-Net): An Improved U-Net Architecture for Cell Segmentation Powered by 4 × 4 Max-Pooling Layers. In: 2020 IEEE 17th International Symposium on Biomedical Imaging (ISBI), April 3–7, 2020. Iowa, USA. IEEE. 446–450. |
| Arias Velásquez, R. M., Pando Ezcurra, T. T., 2024. Dust Analysis in Photo-Voltaic Solar Plants with Satellite Data. Ain Shams Engineering Journal, 15(1): 102314. https://doi.org/10.1016/j.asej.2023.102314 |
| Askhat, N., Zhu, K., Bekzat, R., et al., 2023. Exploring the Complexities of Sand Dune Transformation: The Role of Anthropogenic Degradation and Climatic Conditions. Frontiers in Earth Science, 11: 1271127. https://doi.org/10.3389/feart.2023.1271127 |
| Ban, J., Lu, K. L., Wang, Q., et al., 2022. Climate Change Will Amplify the Inequitable Exposure to Compound Heatwave and Ozone Pollution. One Earth, 5(6): 677–686. https://doi.org/10.1016/j.oneear.2022.05.007 |
| Chen, J., He, Z. Q., Zhu, D. Y., et al., 2022. Mu-Net: Multi-Path Upsampling Convolution Network for Medical Image Segmentation. Computer Modeling in Engineering & Sciences, 131(1): 73–95. https://doi.org/10.32604/cmes.2022.018565 |
| Cui, Y. M., Liu, M. M., Li, W., et al., 2024. An Exploratory Framework to Identify Dust on Photovoltaic Panels in Offshore Floating Solar Power Stations. Energy, 307: 132559. https://doi.org/10.1016/j.energy.2024.132559 |
| Daudon, C., Beyers, M., Jackson, D., et al., 2024. Prediction of Barchan Dunes Migration Using Climatic Models and Speed-up Effect of Dune Topography on Air Flow. Earth and Planetary Science Letters, 648: 119049. https://doi.org/10.1016/j.epsl.2024.119049 |
| Di Benedetto, A., Fiani, M., Gujski, L. M., 2023. U-Net-Based CNN Architecture for Road Crack Segmentation. Infrastructures, 8(5): 90. https://doi.org/10.3390/infrastructures8050090 |
| Ghazouani, N., Labiadh, M. T., Alassaf, Y., et al., 2025. Monitoring and Assessment of Sand Encroachment near Sakala Solar Farm: Results from Field Observations. Journal of Ecological Engineering, 26(1): 83–94. https://doi.org/10.12911/22998993/195264 |
| Harrak, Y., Rachid, A., Aguejdad, R., 2025. Evaluation of Spectral Indices and Global Thresholding Methods for the Automatic Extraction of Built-up Areas: An Application to a Semi-Arid Climate Using Landsat 8 Imagery. Urban Science, 9(3): 78. https://doi.org/10.3390/urbansci9030078 |
| He, T., Chen, J. Y., Kang, L. C., et al., 2024. Evaluation of Global-Scale and Local-Scale Optimized Segmentation Algorithms in GEOBIA with SAM on Land Use and Land Cover. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 17: 6721–6738. https://doi.org/10.1109/JSTARS.2024.3373385 |
| Huan, H., Li, P. C., Zou, N., et al., 2021. End-to-End Super-Resolution for Remote-Sensing Images Using an Improved Multi-Scale Residual Network. Remote Sensing, 13(4): 666. https://doi.org/10.3390/rs13040666 |
| Jiang, N., Cheng, H., 2024. Probability Density Distributions of Morphological Parameters of Barchan Dunes and Their Responses to the Climate Environment. Geomorphology, 454: 109164. https://doi.org/10.1016/j.geomorph.2024.109164 |
| Jin, B. X., Liu, P. P., Wang, P., et al., 2020. Optic Disc Segmentation Using Attention-Based U-Net and the Improved Cross-Entropy Convolutional Neural Network. Entropy, 22(8): 844. https://doi.org/10.3390/e22080844 |
| Jin, L. L., He, Q., 2023. On the Association between Fine Dust Concentrations from Sand Dunes and Environmental Factors in the Taklimakan Desert. Remote Sensing, 15(7): 1719. https://doi.org/10.3390/rs15071719 |
| Kwak, J. I., Lee, T. Y., An, Y. J., 2023. Assessing the Potential Toxicity of Hazardous Material Released from Pb-Based Perovskite Solar Cells to Crop Plants. Journal of Cleaner Production, 423: 138856. https://doi.org/10.1016/j.jclepro.2023.138856 |
| Liu, X. Y., Wang, H. B., Zuo, H. J., et al., 2024. Wind and Sand Environment and Spatial Differentiation of Sediment in the West Desert of Yinshan Mountain in China. Environmental Earth Sciences, 83(5): 139. https://doi.org/10.1007/s12665-023-11360-w |
| Lodhi, M. K., Tan, Y. M., Wang, X. L., et al., 2024. Harnessing Rooftop Solar Photovoltaic Potential in Islamabad, Pakistan: A Remote Sensing and Deep Learning Approach. Energy, 304: 132256. https://doi.org/10.1016/j.energy.2024.132256 |
| Lu, A. Q., Wu, Z. F., Jiang, Z., et al., 2024. DCV2I: A Practical Approach for Supporting Geographers' Visual Interpretation in Dune Segmentation with Deep Vision Models. Proceedings of the AAAI Conference on Artificial Intelligence, 38(21): 22788–22796. https://doi.org/10.1609/aaai.v38i21.30313 |
| Maeda, S., 2022. Image Super-Resolution with Deep Dictionary. Computer Vision: ECCV 2022. Springer Nature Switzerland, Cham. 464–480. https://doi.org/10.1007/978-3-031-19800-7_27. |
| Mittal, H., Pandey, A. C., Saraswat, M., et al., 2022. A Comprehensive Survey of Image Segmentation: Clustering Methods, Performance Parameters, and Benchmark Datasets. Multimedia Tools and Applications, 81(24): 35001–35026. https://doi.org/10.1007/s11042-021-10594-9 |
| Mokarram, M. J., Rashiditabar, R., Gitizadeh, M., et al., 2023. Net-Load Forecasting of Renewable Energy Systems Using Multi-Input LSTM Fuzzy and Discrete Wavelet Transform. Energy, 275: 127425. https://doi.org/10.1016/j.energy.2023.127425 |
| Park, J., Lee, J., Sim, D., 2020. Low-Complexity CNN with 1D and 2D Filters for Super-Resolution. Journal of Real-Time Image Processing, 17(6): 2065–2076. https://doi.org/10.1007/s11554-020-01019-1 |
| Petrova, P. G., de Jong, S. M., Ruessink, G., 2023. A Global Remote-Sensing Assessment of the Intersite Variability in the Greening of Coastal Dunes. Remote Sensing, 15(6): 1491. https://doi.org/10.3390/rs15061491 |
| Polat, A., Keskin, İ., Polat, Ö., 2023. Automatic Detection and Mapping of Dolines Using U-Net Model from Orthophoto Images. ISPRS International Journal of Geo-Information, 12(11): 456. https://doi.org/10.3390/ijgi12110456 |
| Rehman, K., Fareed, N., Chu, H. J., 2023. NASA ICESat-2: Space-Borne LiDAR for Geological Education and Field Mapping of Aeolian Sand Dune Environments. Remote Sensing, 15(11): 2882. https://doi.org/10.3390/rs15112882 |
| Siddique, N., Paheding, S., Elkin, C. P., et al., 2021. U-Net and Its Variants for Medical Image Segmentation: a Review of Theory and Applications. IEEE Access, 9: 82031–82057. https://doi.org/10.1109/ACCESS.2021.3086020 |
| Sun, S. T., Dustdar, S., Ranjan, R., et al., 2022. Remote Sensing Image Interpretation with Semantic Graph-Based Methods: a Survey. IEEE Journal of Selected Topics in Applied Earth Observations and Remote Sensing, 15: 4544–4558. https://doi.org/10.1109/JSTARS.2022.3176612 |
| Wang, P. J., Bayram, B., Sertel, E., 2022. A Comprehensive Review on Deep Learning Based Remote Sensing Image Super-Resolution Methods. Earth-Science Reviews, 232: 104110. https://doi.org/10.1016/j.earscirev.2022.104110 |
| Wang, Y. M., Liu, B. L., Xing, Y., et al., 2024. Ecological Construction Status of Photovoltaic Power Plants in China's Deserts. Frontiers in Environmental Science, 12: 1406546. https://doi.org/10.3389/fenvs.2024.1406546 |
| Wen, C. C., Liu, S. F., Yao, X. J., et al., 2019. A Novel Spatiotemporal Convolutional Long Short-Term Neural Network for Air Pollution Prediction. Science of the Total Environment, 654: 1091–1099. https://doi.org/10.1016/j.scitotenv.2018.11.086 |
| Vimpere, L., 2024. Parabolic Dune Distribution, Morphology and Activity during the last 20 000 years: a Global Overview. Earth Surface Processes and Landforms, 49(1): 117–146. https://doi.org/10.1002/esp.5648 |
| Xia, Z. L., Li, Y. J., Zhang, W., et al., 2022. Solar Photovoltaic Program Helps Turn Deserts Green in China: Evidence from Satellite Monitoring. Journal of Environmental Management, 324: 116338. https://doi.org/10.1016/j.jenvman.2022.116338 |
|
Yan, H., Wang, Z. X., Xu, Z. J., et al., 2024. Research on Image Super-Resolution Reconstruction Mechanism Based on Convolutional Neural Network. Proceedings of the 2024 4th International Conference on Artificial Intelligence, Automation and High Performance Computing. July 19–21, 2024, Zhuhai, China. ACM: 142–146. |
| Yang, L., Zhao, F. K., Yen, H., et al., 2024. Urbanization and Land Use Regulate Soil Vulnerability to Antibiotic Contamination in Urban Green Spaces. Journal of Hazardous Materials, 465: 133363. https://doi.org/10.1016/j.jhazmat.2023.133363 |
| Yao, Z. Y., Xiao, J. H., Xie, X. S., et al., 2022. Design of Optimal Sand Fences around a Desert Solar Park—A Case Study from Phase Ⅳ of the Mohammed Bin Rashid Al Maktoum Solar Park. Natural Hazards, 113(1): 673–697. https://doi.org/10.1007/s11069-022-05319-6 |
|
Yilmaz, E. O., Kavzoglu, T., 2024. Quality Assessment for Multi-Resolution Segmentation and Segment-Anything Model Using Worldview-3 Imagery. The International Archives of the Photogrammetry, Remote Sensing and Spatial Information Sciences. XLVIII-4/W9-2024: 383–390. |
| Yu, Y., She, K., Liu, J. H., et al., 2023. A Super-Resolution Network for Medical Imaging via Transformation Analysis of Wavelet Multi-Resolution. Neural Networks, 166: 162–173. https://doi.org/10.1016/j.neunet.2023.07.005 |
| Zamani, S., Mahmoodabadi, M., Yazdanpanah, N., et al., 2020. Meteorological Application of Wind Speed and Direction Linked to Remote Sensing Images for the Modelling of Sand Drift Potential and Dune Morphology. Meteorological Applications, 27(1): e1851. https://doi.org/10.1002/met.1851 |
| Zhang, J., Shao, M. H., Yu, L. L., et al., 2020. Image Super-Resolution Reconstruction Based on Sparse Representation and Deep Learning. Signal Processing: Image Communication, 87: 115925. https://doi.org/10.1016/j.image.2020.115925 |
Figures(6)
